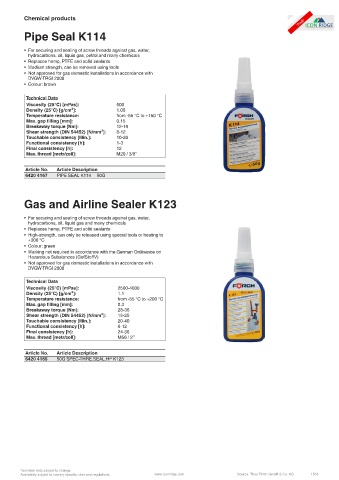

Page 1518 - Icon Ridge Automotive & Truck Catalog

Chemical products

Pipe Seal K114

• For securing and sealing of screw threads against gas, water,
hydrocarbons, oil, liquid gas, petrol and many chemicals
• Replaces hemp, PTFE and solid sealants
• Medium strength, can be removed using tools
• Not approved for gas domestic installations in accordance with
DVGW-TRGI 2008
• Colour: brown

Technical Data
Viscosity (25°C) [mPas]: 500
Density (25°C) [g/cm³]: 1.05
Temperature resistance: from -55 °C to +150 °C
Max. gap filling [mm]: 0.15
Breakaway torque [Nm]: 12-16
Shear strength (DIN 54452) [N/mm²]: 8-12
Touchable consistency [Min.]: 10-20
Functional consistency [h]: 1-3
Final consistency [h]: 12
Max. thread [metr/zoll]: M20 / 3/8’’

Article No. Article Description
6420 4167 PIPE SEAL K114 50G

Gas and Airline Sealer K123

• For securing and sealing of screw threads against gas, water,
hydrocarbons, oil, liquid gas and many chemicals
• Replaces hemp, PTFE and solid sealants
• High-strength, can only be released using special tools or heating to
+300 °C
• Colour: green
• Marking not required in accordance with the German Ordinance on
Hazardous Substances (GefStoffV)
• Not approved for gas domestic installations in accordance with
DVGW-TRGI 2008

Technical Data
Viscosity (25°C) [mPas]: 2500-4000
Density (25°C) [g/cm³]: 1.1
Temperature resistance: from -55 °C to +200 °C
Max. gap filling [mm]: 0.3
Breakaway torque [Nm]: 28-36
Shear strength (DIN 54452) [N/mm²]: 15-25
Touchable consistency [Min.]: 20-40
Functional consistency [h]: 6-12
Final consistency [h]: 24-36
Max. thread [metr/zoll]: M56 / 2’’

Article No. Article Description
6420 4165 50G SPEC-THRE.SEAL.HF K123

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1518
