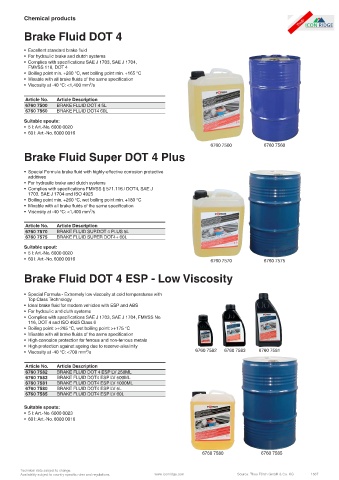

Page 1667 - Icon Ridge Automotive & Truck Catalog

Chemical products

Brake Fluid DOT 4

• Excellent standard brake fluid
• For hydraulic brake and clutch systems
• Complies with specifications SAE J 1703, SAE J 1704,
FMVSS 116, DOT 4
• Boiling point min. +260 °C, wet boiling point min. +165 °C
• Mixable with all brake fluids of the same specification
• Viscosity at -40 °C: <1,400 mm²/s

Article No. Article Description
6760 7500 BRAKE FLUID DOT 4 5L
6760 7560 BRAKE FLUID DOT4 60L
Suitable spouts:
• 5 l: Art.-No. 6000 0020
• 60 l: Art.-No. 6000 0016

6760 7500 6760 7560
Brake Fluid Super DOT 4 Plus

• Special Formula brake fluid with highly-effective corrosion protective
additives
• For hydraulic brake and clutch systems
• Complies with specifications FMVSS § 571.116 / DOT4, SAE J
1703, SAE J 1704 and ISO 4925
• Boiling point min. +260 °C, wet boiling point min. +180 °C
• Mixable with all brake fluids of the same specification
• Viscosity at -40 °C: <1,400 mm²/s

Article No. Article Description
6760 7570 BRAKE FLUID SUP.DOT 4 PLUS 5L
6760 7575 BRAKE FLUID SUPER DOT4+ 60L
Suitable spout:
• 5 l: Art.-No. 6000 0020
• 60 l: Art.-No. 6000 0016 6760 7570 6760 7575

Brake Fluid DOT 4 ESP - Low Viscosity

• Special Formula - Extremely low viscosity at cold temperatures with
Top Class Technology
• Ideal brake fluid for modern vehicles with ESP and ABS
• For hydraulic and cluth systems
• Complies with specifications SAE J 1703, SAE J 1704, FMVSS No.
116, DOT 4 and ISO 4925 Class 6
• Boiling point: >+265 °C, wet boiling point: >+175 °C
• Mixable with all brake fluids of the same specification
• High corrosion protection for ferrous and non-ferrous metals
• High protection against ageing due to reserve-alkalinity
• Viscosity at -40 °C: <700 mm²/s 6760 7582 6760 7583 6760 7581

Article No. Article Description
6760 7582 BRAKE FLUID DOT 4 ESP LV 250ML
6760 7583 BRAKE FLUID DOT4 ESP LV 500ML
6760 7581 BRAKE FLUID DOT4 ESP LV 1000ML
6760 7580 BRAKE FLUID DOT4 ESP LV 5L
6760 7585 BRAKE FLUID DOT4 ESP LV 60L

Suitable spouts:
• 5 l: Art.-No. 6000 0023
• 60 l: Art.-No. 6000 0016

6760 7580 6760 7585

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1667
