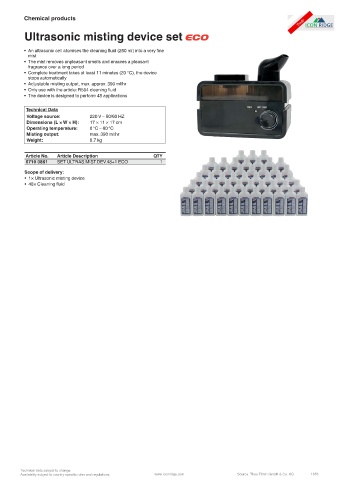

Page 1676 - Icon Ridge Automotive & Truck Catalog

Chemical products

Ultrasonic misting device set

• An ultrasonic cell atomises the cleaning fluid (250 ml) into a very fine
mist
• The mist removes unpleasant smells and ensures a pleasant
fragrance over a long period
• Complete treatment takes at least 11 minutes (20 °C), the device
stops automatically
• Adjustable misting output, max. approx. 390 ml/hr
• Only use with the article: R584 cleaning fluid
• The device is designed to perform 48 applications

Technical Data
Voltage source: 220 V – 50/60 HZ
Dimensions (L × W × H): 17 × 11 × 17 cm
Operating temperature: 0 °C – 60 °C
Misting output: max. 390 ml/hr
Weight: 0.7 kg

Article No. Article Description QTY
6710 0861 SET ULTRAS.MIST.DEV.48+1 ECO 1
Scope of delivery:
• 1× Ultrasonic misting device
• 48× Cleaning fluid

Technical data subject to change.
Availability subject to country specific rules and regulations. www.iconridge.com Source: Theo Förch GmbH & Co. KG 1676
