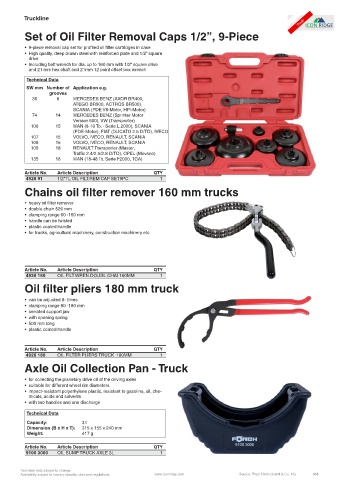

Page 934 - Icon Ridge Automotive & Truck Catalog
P. 934

Truckline

          Set of Oil Filter Removal Caps 1/2”, 9-Piece


          • 9-piece removal cap set for profiled oil filter cartridges in case
          • High quality, deep drawn steel with reinforced plate and 1/2” square
           drive
          • Including belt wrench for dia. up to 160 mm with 1/2” square drive
           and 21 mm hex shaft and 21mm 12 point offset box wrench

          Technical Data
          SW mm Number of Application e.g.
                  grooves
            36       6     MERCEDES BENZ (AXOR BR400,
                           ATEGO BR900, ACTROS BR500),
                           SCANIA (PDE V8-Motor, HPI-Motor)
            74       14    MERCEDES BENZ (Sprinter Motor
                           Version 600), VW (Transporter)
            106      15    MAN (8-10 To. - Serie L 2000), SCANIA
                           (PDE-Motor), FIAT (DUCATO 2.5 D/TD), IVECO
            107      15    VOLVO, IVECO, RENAULT, SCANIA
            108      15    VOLVO, IVECO, RENAULT, SCANIA
            108      18    RENAULT Transporter (Master,
                           Traffic 2.4/2.5/2.8 D/TD), OPEL (Movano)
            135      18    MAN (18-48 To. Serie F2000, TGA)

          Article No.  Article Description             QTY
          4926 91    1/2"TL OIL FILT.REM CAP SET9PC      1
          Chains oil filter remover 160 mm trucks


          •  heavy oil filter remover
          • double chain 520 mm
          • clamping range 60 -160 mm
          • handle can be twisted
          • plastic coated handle
          • for trucks, agricultural machinery, construction machinery etc.






          Article No.  Article Description             QTY
          4926 160   OIL FILT.WREN.DOUBL.CHAI.160MM      1
          Oil filter pliers 180 mm truck


          • can be adjusted 8- times
          • clamping range 80 -180 mm
          • serrated support jaw
          • with opening spring
          • 500 mm long
          • plastic coated handle



          Article No.  Article Description             QTY
          4926 180   OIL FILTER PLIERS TRUCK  180MM      1
          Axle Oil Collection Pan - Truck

          • for collecting the planetary drive oil of the driving axles
          • suitable for different wheel rim diameters
          • impact-resistant polyethylene plastic, resistant to gasoline, oil, che-
           micals, acids and solvents
          • with two handles and one discharge

          Technical Data
          Capacity:           3 l
          Dimension (B x H x T):   315 x 155 x 240 mm
          Weight:             417 g

          Article No.  Article Description             QTY
          9100 3000  OIL SUMP TRUCK AXLE 3L              1



        Technical data subject to change.
