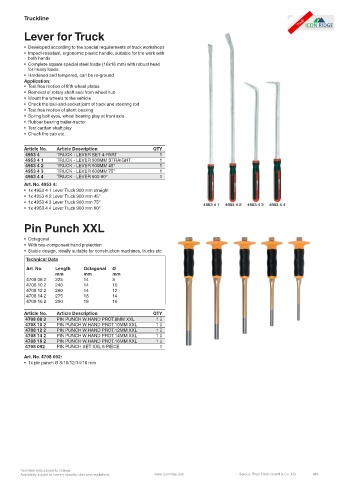

Page 948 - Icon Ridge Automotive & Truck Catalog

Truckline

Lever for Truck

• Developed according to the special requirements of truck workshops
• Impact-resistant, ergonomic plastic handle, suitable for the work with
both hands
• Complete square special steel blade (16x16 mm) with robust head
for heavy loads
• Hardened and tempered, can be re-ground
Application:
• Test free motion of fifth wheel plates
• Removal of rotary shaft seal from wheel hub
• Mount the wheels to the vehicle
• Check the ball-and-socket joint of track and steering rod
• Test free motion of silent-bearing
• Spring bolt eyes, wheel bearing play at front axle
• Rubber bearing trailer-tractor
• Test cardan shaft play
• Check the cab etc...

Article No. Article Description QTY
4953 4 TRUCK - LEVER SET 4-PART 1
4953 4 1 TRUCK - LEVER 900MM STRAIGHT 1
4953 4 2 TRUCK - LEVER 900MM 45° 1
4953 4 3 TRUCK - LEVER 600MM 75° 1
4953 4 4 TRUCK - LEVER 600 90° 1
Art. No. 4953 4:
• 1x 4953 4 1 Lever Truck 900 mm straight
• 1x 4953 4 2 Lever Truck 900 mm 45°
• 1x 4953 4 3 Lever Truck 900 mm 75°
• 1x 4953 4 4 Lever Truck 900 mm 90°

Pin Punch XXL

• Octagonal
• With two-component hand protection
• Stable design, ideally suitable for construction machines, trucks etc.
Technical Data
Art. No. Length Octagonal Ø
mm mm mm
4708 08 2 225 14 8
4708 10 2 240 14 10
4708 12 2 260 14 12
4708 14 2 275 18 14
4708 16 2 290 18 16

Article No. Article Description QTY
4708 08 2 PIN PUNCH W.HAND PROT.8MM XXL 1 ü
4708 10 2 PIN PUNCH W.HAND PROT.10MM XXL 1 ü
4708 12 2 PIN PUNCH W.HAND PROT.12MM XXL 1 ü
4708 14 2 PIN PUNCH W.HAND PROT.14MM XXL 1 ü
4708 16 2 PIN PUNCH W.HAND PROT.16MM XXL 1 ü
4708 092 PIN PUNCH SET XXL 5-PIECE 1
Art. No. 4708 092:
• 1x pin punch Ø 8/10/12/14/16 mm

Technical data subject to change.
