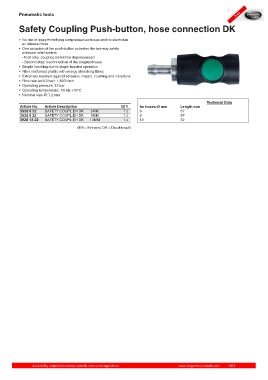

Page 1414 - BPT Automotive & Truck Catalog

Pneumatic tools

Safety Coupling Push-button, hose connection DK

• No risk of injury from flying compressed air hoses and no stentorian
air release noise
• One actuation of the push-button activates the two-way safety
pressure relief system
- First step: coupling element is depressurized
- Second step: disconnection of the coupled hoses
• Simple handling due to single-handed operation
• Fibre reinforced plastic with energy absorbing fibres
• Extremely resistant against abrasion, impact, crushing and vibrations
• Flow rate (at 6.3 bar): 1,820 l/min
• Operating pressure: 12 bar
• Operating temperature: -15 bis +70°C
• Nominal size-Ø: 7.2 mm
Technical Data
Article No. Article Description QTY for hoses-Ø mm Length mm
3928 6 22 SAFETY COUPL.EH DK 6MM 1 z 6 87
3928 9 22 SAFETY COUPL.EH DK 9MM 1 z 8 87
3928 13 22 SAFETY COUPL.EH DK 13MM 1 z 12 92
(EH = Einhand, DK = Druckknopf)
