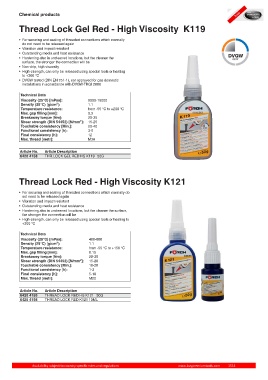

Page 1514 - BPT Automotive & Truck Catalog

Chemical products

Thread Lock Gel Red - High Viscosity K119

• For securing and sealing of threaded connections which normally
do not need to be released again
• Vibration and impact resistant
• Outstanding media and heat resistance
• Hardening also in uncleaned locations, but the cleaner the
surface, the stronger the connection will be
• Non-drip, high viscosity
• High-strength, can only be released using special tools or heating
to +300 °C
• DVGW tested (DIN EN 751-1), not approved for gas domestic
installations in accordance with DVGW-TRGI 2008

Technical Data
Viscosity (25°C) [mPas]: 8000-15000
Density (25°C) [g/cm³]: 1.1
Temperature resistance: from -55 °C to +230 °C
Max. gap filling [mm]: 0.3
Breakaway torque [Nm]: 20-35
Shear strength (DIN 54452) [N/mm²]: 15-25
Touchable consistency [Min.]: 20-40
Functional consistency [h]: 3-6
Final consistency [h]: 12
Max. thread [metr]: M36

Article No. Article Description
6420 4158 THR.LOCK GEL RED HS K119 50G

Thread Lock Red - High Viscosity K121

• For securing and sealing of threaded connections which normally do
not need to be released again
• Vibration and impact resistant
• Outstanding media and heat resistance
• Hardening also in uncleaned locations, but the cleaner the surface,
the stronger the connection will be
• High-strength, can only be released using special tools or heating to
+300 °C
Technical Data
Viscosity (25°C) [mPas]: 400-600
Density (25°C) [g/cm³]: 1.1
Temperature resistance: from -55 °C to +150 °C
Max. gap filling [mm]: 0.15
Breakaway torque [Nm]: 28-35
Shear strength (DIN 54452) [N/mm²]: 15-20
Touchable consistency [Min.]: 10-20
Functional consistency [h]: 1-3
Final consistency [h]: 5-10
Max. thread [metr]: M20

Article No. Article Description
6420 4155 THREAD LOCK RED HS K121 50G
6420 4156 THREAD LOCK RED K121 10ML
