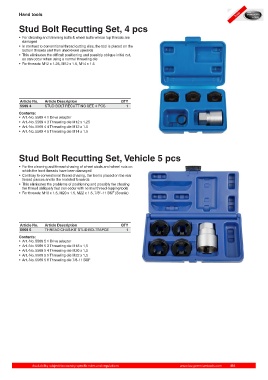

Page 484 - BPT Automotive & Truck Catalog

Hand tools

Stud Bolt Recutting Set, 4 pcs

• For cleaning and trimming bolts & wheel bolts whose top threads are
damaged
• In contrast to conventional thread cutting dies, the tool is placed on the
bottom threads and then unscrewed upwards
• This eliminates the difficult positioning and possibly oblique initial cut,
as can occur when using a normal threading die
• For threads: M12 x 1.25, M12 x 1.5, M14 x 1.5

Article No. Article Description QTY
5569 4 STUD BOLT RECUTTING SET, 4 PCS 1
Contents:
• Art.-No. 5569 4 1 Drive adapter
• Art.-No. 5569 4 3 Threading die M12 x 1.25
• Art.-No. 5569 4 4 Threading die M12 x 1.5
• Art.-No. 5569 4 5 Threading die M14 x 1.5

Stud Bolt Recutting Set, Vehicle 5 pcs

• For the cleaning and thread-chasing of wheel studs and wheel nuts on
which the front threads have been damaged
• Contrary to conventional thread chasing, the tool is placed on the rear
thread passes and is the nrotated forwards
• This eliminates the problems of positioning and possibly the chasing
the thread obliquely that can occur with normal thread-tapping tools
• For threads: M18 x 1.5, M20 x 1.5, M22 x 1.5, 7/8“–11 BSF (Scania)

Article No. Article Description QTY
5569 5 THREAD CHAS.KIT STUD BOLTS5PCE 1
Contents:
• Art.-No. 5569 5 1 Drive adapter
• Art.-No. 5569 5 3 Threading die M18 x 1,5
• Art.-No. 5569 5 4 Threading die M20 x 1,5
• Art.-No. 5569 5 5 Threading die M22 x 1,5
• Art.-No. 5569 5 6 Threading die 7/8-11 BSF
