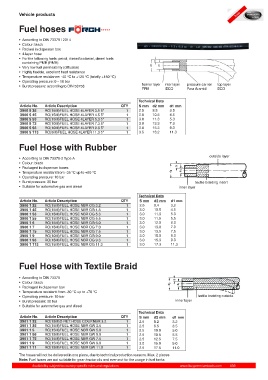

Page 639 - BPT Automotive & Truck Catalog

Vehicle products

Fuel hoses

• According to DIN 73379 / 2014
• Colour: black
• Packed in dispenser box
• 4-layer hose
• For the following fuels: petrol, diesel/biodiesel, diesel fuels
containing PME (RME)
• Very low fuel permeability (diffusion)
• Highly flexible, excellent heat resistance
• Temperature resistance: -40 °C to +125 °C (briefly +150 °C)
• Operating pressure: 0 – 10 bar
barrier layer inter layer pressure carrier top layer
• Burst pressure: according to DIN 53758
FPM ECO Para Aramid ECO

Technical Data
Article No. Article Description QTY S mm d2 mm d1 mm
3900 5 35 RO(15M)FUEL HOSE 4LAYER 3.5 5* 1 2.5 8.5 3.5
3900 5 45 RO(15M)FUEL HOSE 4LAYER 4.5 5* 1 3.0 10.5 4.5
3900 5 53 RO(15M)FUEL HOSE 4LAYER 5.3 5* 1 3.0 11.3 5.3
3900 5 73 RO(10M)FUEL HOSE 4LAYER 7.3 5* 1 3.0 13.3 7.3
3900 5 93 RO(10M)FUEL HOSE 4LAYER 9.3 5* 1 3.0 15.3 9.3
3900 5 113 RO(8M)FUEL HOSE 4LAYER 11.3 5* 1 3.5 18.2 11.3

Fuel Hose with Rubber

outside layer
• According to DIN 73379-2 Type A
• Colour: black
• Packaged in dispenser boxes
• Temperature resistant from -35 °C up to +90 °C
• Operating pressure: 10 bar
• Burst pressure: 30 bar textile braiding insert
• Suitable for automotive gas and diesel inner layer

Technical Data
Article No. Article Description QTY S mm d2 mm d1 mm
3900 1 32 RO(15M)FUEL HOSE NBR OG 3.2 1 2.6 8.4 3.2
3900 1 45 RO(15M)FUEL HOSE NBR OG 4.5 1 3.0 10.5 4.5
3900 1 53 RO(15M)FUEL HOSE NBR OG 5.3 1 3.0 11.3 5.3
3900 1 55 RO(15M)FUEL HOSE NBR OG 5.5 1 3.0 11.5 5.5
3900 1 6 RO(15M)FUEL HOSE NBR OG 6.0 1 3.0 12.0 6.0
3900 1 7 RO(15M)FUEL HOSE NBR OG 7.0 1 3.0 13.0 7.0
3900 1 75 RO(10M)FUEL HOSE NBR OG 7.5 1 3.0 13.5 7.5
3900 1 9 RO(10M)FUEL HOSE NBR OG 9.0 1 3.0 15.0 9.0
3900 1 93 RO(15M)FUEL HOSE NBR OG 9.3 1 3.0 15.3 9.3
3900 1 113 RO(15M)FUEL HOSE NBR OG 11.3 1 3.0 17.3 11.3

Fuel Hose with Textile Braid

• According to DIN 73379
• Colour: black
• Packaged in dispenser box
• Temperature resistant: from -30 °C up to +70 °C
• Operating pressure: 10 bar textile braiding outside
• Burst pressure: 30 bar inner layer
• Suitable for automotive gas and diesel
Technical Data
Article No. Article Description QTY S mm d2 mm d1 mm
3901 1 32 RO(15M)D-RET.HOSE COUP.NBR 3.2 1 2.5 8.2 3.2
3901 1 35 RO(15M)FUEL HOSE NBR GW 3.5 1 2.5 8.5 3.5
3901 1 5 RO(15M)FUEL HOSE NBR GW 5.0 1 2.5 10.0 5.0
3901 1 55 RO(15M)FUEL HOSE NBR GW 5.5 1 2.5 10.5 5.5
3901 1 75 RO(15M)FUEL HOSE NBR GW 7.5 1 2.5 12.5 7.5
3901 1 9 RO(15M)FUEL HOSE NBR GW 9.0 1 3.0 15.0 9.0
3901 1 11 RO(15M)FUEL HOSE NBR GW 11.0 1 2.5 17.5 11.0
The hoses will not be delivered in one piece, due to technical production reasons. Max. 2 pieces
Note: Fuel hoses are not suitable for gear-/motor oils and even not for the usage in fuel tanks
Availability subject to country specific rules and regulations www.buypremiumtools.com 639
