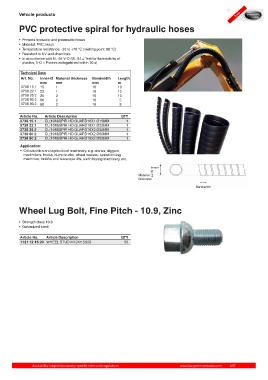

Page 647 - BPT Automotive & Truck Catalog

Vehicle products

PVC protective spiral for hydraulic hoses

• Protects hydraulic and pneumatic hoses
• Material: PVC, black
• Temperature resistance: -30 to +70 °C (melting point: 80 °C)
• Resistant to UV and chemicals
• In accordance with UL-94-V-O (UL-94 = Test for flammability of
plastics, V-O = Flames extinguished within 10 s)

Technical Data
Art. No. Inner-Ø Material thickness Bandwidth Length
mm mm mm m
3738 15 1 15 1 16 10
3738 22 1 22 1 16 10
3738 35 2 35 2 16 10
3738 60 2 60 2 16 5
3738 80 2 80 2 16 5

Article No. Article Description QTY
3738 15 1 CL(10M)SPIR.HO.GUARD16X1 Ø15MM 1
3738 22 1 CL(10M)SPIR.HO.GUARD16X1 Ø22MM 1
3738 35 2 CL(10M)SPIR.HO.GUARD16X2 Ø35MM 1
3738 60 2 CL(10M)SPIR.HO.GUARD16X2 Ø60MM 1
3738 80 2 CL(10M)SPIR.HO.GUARD16X2 Ø80MM 1
Application:
• Construction and agricultural machinery, e.g. cranes, diggers,
road rollers, trucks, dump trucks, wheel loaders, tunnel drilling
machines, forklifts and telescope lifts, earth boring machinery, etc.
Inner-
Ø
Material
thickness
Bandwidth

Wheel Lug Bolt, Fine Pitch - 10.9, Zinc

• Strength class 10.9
• Galvanized steel

Article No. Article Description QTY
1121 12 15 20 WHEEL STUD M12X1.5X20 50

Availability subject to country specific rules and regulations www.buypremiumtools.com 647
