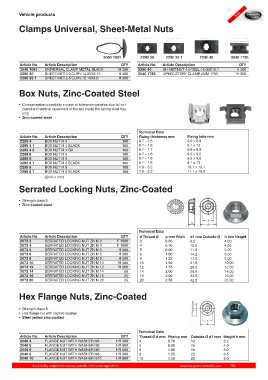

Page 788 - BPT Automotive & Truck Catalog

Vehicle products

Clamps Universal, Sheet-Metal Nuts

Article No. Article Description QTY Article No. Article Description QTY
3040 1061 UNIVERSAL CLAMP METAL BLACK fH 300 2290 40 SH.MET.NUT 4.0 YELL.18.00X10.1 H 300
2290 30 SHEET-MET.3.0 CURV.14.85X8.15 H 300 3040 1795 UPHOLSTERY CLAMP 4MM 1795 fH 300
2290 35 1 SHEET-MET.3.5 CURV.15.10X8.0 H 300

Box Nuts, Zinc-Coated Steel

• Compensation possibility in case of tolerance variation due to hori-
zontal and vertical movement of the nut inside the spring steel hou-
sing
• Zinc-coated steel

Technical Data
Article No. Article Description QTY Fixing thickness mm Fixing hole mm
2295 4 BOX NUT M 4 100 0.7 – 1.6 6.9 × 6.9
2295 4 1 BOX NUT M 4 BLACK 100 0.7 – 1.6 8.1 × 13
2295 4 2 BOX NUT M 4 GA 100 0.7 – 1.7 9.5 × 9.5
2295 5 BOX NUT M 5 100 0.7 – 1.6 9.5 × 9.5
2295 6 BOX NUT M 6 100 0.7 – 1.6 9.5 × 9.5
2295 6 1 BOX NUT M 6 BLACK 100 0.7 – 1.6 8.1 × 13
2295 8 BOX NUT M 8 100 1.8 – 3.2 12.1 × 12.1
2295 8 1 BOX NUT M 8 BLACK 100 1.8 – 3.2 11.1 × 18.5
(Ø M in mm)

Serrated Locking Nuts, Zinc-Coated

• Strength class 8
• Zinc-coated steel

Technical Data
Article No. Article Description QTY d Thread Ø p mm Pitch d1 mm Outside Ø h mm Height
2073 3 SERRATED LOCKING NUT ZN M 3 F 1000 3 0.50 8.0 4.00
2073 4 SERRATED LOCKING NUT ZN M 4 F 1000 4 0.70 10.0 4.65
2073 5 SERRATED LOCKING NUT ZN M 5 H 500 5 0.80 11.8 5.00
2073 6 SERRATED LOCKING NUT ZN M 6 H 500 6 1.00 14.2 6.00
2073 8 SERRATED LOCKING NUT ZN M 8 H 500 8 1.25 17.9 8.00
2073 10 SERRATED LOCKING NUT ZN M 10 fH 500 10 1.50 21.8 10.00
2073 12 SERRATED LOCKING NUT ZN M 12 fH 500 12 1.75 26.0 12.00
2073 14 SERRATED LOCKING NUT ZN M 14 50 14 2.00 29.9 14.00
2073 16 SERRATED LOCKING NUT ZN M 16 25 16 2.00 34.5 16.00
2073 20 SERRATED LOCKING NUT ZN M 20 25 20 2.50 42.8 20.00

Hex Flange Nuts, Zinc-Coated

• Strength class 8
• Hex flange nut with captive washer
• Steel yellow zinc-coated

Technical Data
Article No. Article Description QTY Thread Ø d mm Pitch p mm Outside Ø d1 mm Height h mm
2040 4 FLANGE NUT WITH WASHER M4 HR 500 4 0.70 12 3.2
2040 5 FLANGE NUT WITH WASHER M5 HR 500 5 0.80 15 4.0
2040 6 FLANGE NUT WITH WASHER M6 HR 500 6 1.00 18 5.0
2040 8 FLANGE NUT WITH WASHER M8 HR 500 8 1.25 23 6.5
2040 10 FLANGE NUT WITH WASHER M10 HR 500 10 1.50 28 8.0
