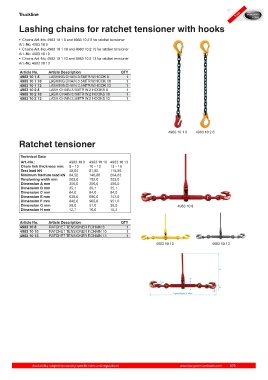

Page 879 - BPT Automotive & Truck Catalog

Truckline

Lashing chains for ratchet tensioner with hooks

• Chains Art.-No. 4983 10 1 8 and 4983 10 2 8 for ratchet tensioner
Art.-No. 4983 10 8
• Chains Art.-No. 4983 10 1 10 and 4983 10 2 10 for ratchet tensioner
Art.-No. 4983 10 10
• Chains Art.-No. 4983 10 1 13 and 4983 10 2 13 for ratchet tensioner
Art.-No. 4983 10 13

Article No. Article Description QTY
4983 10 1 8 LASHING CHAIN 3.5MTR W.HOOK 8 1
4983 10 1 10 LASHING CHAIN 3.5MTR W.HOOK 10 1
4983 10 1 13 LASHING CHAIN 3.5MTR W.HOOK 13 1
4983 10 2 8 LASH.CHAIN 3.5MTR W.2 HOOKS 8 1
4983 10 2 10 LASH.CHAIN 3.5MTR W.2 HOOKS 10 1
4983 10 2 13 LASH.CHAIN 3.5MTR W.2 HOOKS 13 1

4983 10 1 8 4983 10 2 8

Ratchet tensioner

Technical Data
Art.-No.: 4983 10 8 4983 10 10 4983 10 13
Chain link thickness mm: 8 – 10 10 – 13 13 – 16
Test load kN 48,04 81,85 115,56
Minimum fracture load kN 84,52 146,80 204,63
Tensioning width mm 203,0 152,0 203,0
Dimension A mm 356,0 356,0 356,0
Dimension B mm 35,1 35,1 35,1
Dimension C mm 64,0 64,0 64,0
Dimension E mm 638,0 690,0 747,0
Dimension F mm 842,0 905,0 951,0
Dimension G mm 28,0 31,0 39,0 4983 10 8
Dimension H mm 12,7 16,0 18,3

Article No. Article Description QTY
4983 10 8 RATCHET TENSIONER F.CHAIN 8 1
4983 10 10 RATCHET TENSIONER F.CHAIN 10 1
4983 10 13 RATCHET TENSIONER F.CHAIN 13 1
4983 10 10 4983 10 13

Availability subject to country specific rules and regulations www.buypremiumtools.com 879
