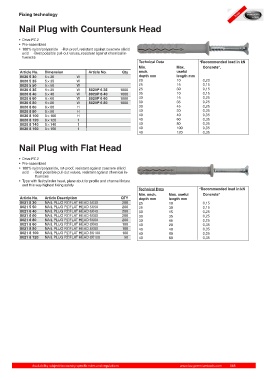

Page 168 - BPT Hardware & Fixing Technology Catalog

Fixing technology

Nail Plug with Countersunk Head

• Drive PZ 2
• Pre-assembled
• 100% nylon/polyamide -Rot-proof, resistant against concrete silicid
acid -Best possible pull-out values, resistant against chemical in-
fluences
Technical Data *Recommended load in kN
Min. Max. Concrete*.
Article No. Dimension Article No. Qty anch. useful
8020 5 30 5 × 30 W depth mm length mm
8020 5 35 5 × 35 W 20 10 0,20
8020 5 50 5 × 50 W 25 15 0,15
8020 6 35 6 × 35 W 8020P 6 35 1000 25 30 0,15
8020 6 40 6 × 40 W 8020P 6 40 1000 35 10 0,15
8020 6 60 6 × 60 W 8020P 6 60 1000 30 15 0,25
8020 6 80 6 × 80 W 8020P 6 80 1000 30 35 0,25
8020 8 60 8 × 60 H 30 45 0,25
8020 8 80 8 × 80 H 40 20 0,35
8020 8 100 8 × 100 H 40 40 0,35
8020 8 120 8 × 120 f 40 60 0,35
8020 8 140 8 × 140 f 40 80 0,35
8020 8 160 8 × 160 f 40 100 0,35
40 120 0,35

Nail Plug with Flat Head

• Drive PZ 2
• Pre-assembled
• 100% nylon/polyamide, rot-proof, resistant against concrete silicid
acid - Best possible pull-out values, resistant against chemical in-
fluences
• Type with flat/cylinder head, plane abut for profile and channel fixture
and this way highest fixing safety
Technical Data *Recommended load in kN
Min. anch. Max. useful Concrete*
Article No. Article Description QTY depth mm length mm
8021 5 30 NAIL PLUG PZ FLAT HEAD 5X30 200 25 10 0,15
8021 5 50 NAIL PLUG PZ FLAT HEAD 5X50 200 25 30 0,15
8021 6 40 NAIL PLUG PZ FLAT HEAD 6X40 200 30 15 0,25
8021 6 60 NAIL PLUG PZ FLAT HEAD 6X60 200 30 35 0,25
8021 6 80 NAIL PLUG PZ FLAT HEAD 6X80 200 30 45 0,25
8021 8 60 NAIL PLUG PZ FLAT HEAD 8X60 100 40 20 0,35
8021 8 80 NAIL PLUG PZ FLAT HEAD 8X80 100 40 40 0,35
8021 8 100 NAIL PLUG PZ FLAT HEAD 8X100 100 40 60 0,35
8021 8 120 NAIL PLUG PZ FLAT HEAD 8X120 50 40 80 0,35
