Fixing technology

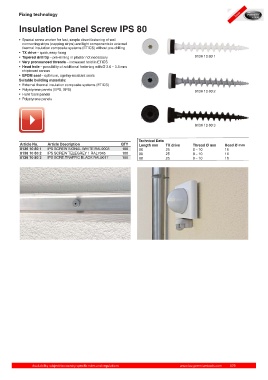

Insulation Panel Screw IPS 80

• Special screw anchor for fast, simple direct fastening of wall
connecting strips (capping strips) and light components in external
thermal insulation composite systems (ETICS) without pre-drilling
• TX drive – quick,easy fixing
• Tapered drill tip – pre-drilling in plaster not necessary 8136 10 80 1
• Very pronounced threads – increased hold in ETICS
• Head hole – possibility of additional fastening with Ø 3.0 – 3.5 mm
chipboard screws
• EPDM seal – optimum, ageing-resistant seals
Suitable building materials:
• External thermal insulation composite systems (ETICS)
• Polystyrene panels (EPS, XPS)
8136 10 80 2
• Hard foam panels
• Polystyrene panels

8136 10 80 3

Technical Data
Article No. Article Description QTY Length mm TX drive Thread Ø mm Head Ø mm
8136 10 80 1 IPS SCREW SIGNAL WHITE RAL9003 100 80 25 8 – 10 16
8136 10 80 2 IPS SCREW TELEGREY 1 RAL7045 100 80 25 8 – 10 16
8136 10 80 3 IPS SCRE.TRAFFIC BLACK RAL9017 100 80 25 8 – 10 16

Availability subject to country specific rules and regulations www.buypremiumtools.com 179
