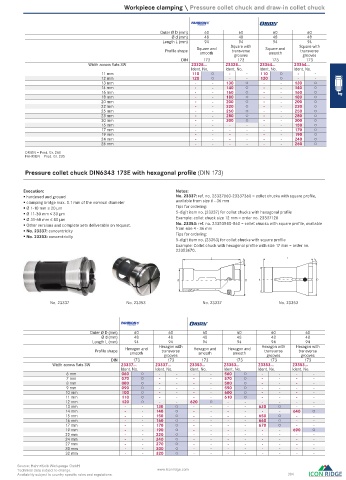

Page 384 - Icon Ridge Presents ORION

Workpiece clamping \ Pressure collet chuck and draw-in collet chuck

Outer Ø D (mm) 60 60 60 60
Ø d (mm) 48 48 48 48
Length L (mm) 94 Square with 94 Square with
94
94
Profi le shape Square and transverse Square and transverse
smooth
smooth
grooves
grooves
DIN 173 173 173 173
Width across fl ats SW 23328... 23328... 23354... 23354...
Ident. No. Ident. No. Ident. No. Ident. No.
11 mm 110 ○ - - 110 ○ - -
12 mm 120 ○ - - 120 ○ - -
13 mm - - 130 ○ - - 130 ○
14 mm - - 140 ○ - - 140 ○
16 mm - - 160 ○ - - 160 ○
18 mm - - 180 ○ - - 180 ○
20 mm - - 200 ○ - - 200 ○
22 mm - - 220 ○ - - 220 ○
25 mm - - 250 ○ - - 250 ○
28 mm - - 280 ○ - - 280 ○
30 mm - - 300 ○ - - 300 ○
15 mm - - - - - - 150 ○
17 mm - - - - - - 170 ○
19 mm - - - - - - 190 ○
24 mm - - - - - - 240 ○
26 mm - - - - - - 260 ○
ORION = Prod. Gr. 2AE
FAHRION = Prod. Gr. 235
Pressure collet chuck DIN6343 173E with hexagonal profi le ( DIN 173 )
Execution: Notes:
 hardened and ground No. 23337: ref. no. 23337060-23337360 = collet chucks with square profi le,
 clamping bridge max. 0.1 mm of the nominal diameter available from size 6 - 36 mm
 Ø 1-10 mm ≤ 20 µm Tips for ordering:
 Ø 11-30 mm ≤ 30 µm 5-digit item no. (23337) for collet chucks with hexagonal profi le
 Ø 31-60 mm ≤ 40 µm Example: collet chuck size 12 mm = order no. 23337120
 Other versions and complete sets deliverable on request. No. 23353: ref. no. 23353540-860 = collet chucks with square profi le, available
from size 4 - 36 mm
 No. 23337: concentricity
 No. 23353: concentricity Tips for ordering:
5-digit item no. (23353) for collet chucks with square profi le
Example: Collet chuck with hexagonal profi le with size 17 mm = order no.
23353670.
L L

d D d D

No. 23337 No. 23353 No. 23337 No. 23353

Outer Ø D (mm) 60 60 60 60 60 60
Ø d (mm) 48 48 48 48 48 48
Length L (mm) 94 94 94 94 94 94
transverse
transverse
transverse
Profi le shape Hexagon and Hexagon with Hexagon and Hexagon and Hexagon with Hexagon with
smooth
smooth
smooth
grooves
grooves
grooves
DIN 173 173 173 173 173 173
Width across fl ats SW 23337... 23337... 23353... 23353... 23353... 23353...
Ident. No. Ident. No. Ident. No. Ident. No. Ident. No. Ident. No.
6 mm 060 ○ - - - - 560 ○ - - - -
7 mm 070 ○ - - - - 570 ○ - - - -
8 mm 080 ○ - - - - 580 ○ - - - -
9 mm 090 ○ - - - - 590 ○ - - - -
10 mm 100 ○ - - - - 600 ○ - - - -
11 mm 110 ○ - - - - 610 ○ - - - -
12 mm 120 ○ - - 620 ○ - - - - - -
13 mm - - 130 ○ - - - - 630 ○ - -
14 mm - - 140 ○ - - - - - - 640 ○
15 mm - - 150 ○ - - - - 650 ○ - -
16 mm - - 160 ○ - - - - 660 ○ - -
17 mm - - 170 ○ - - - - 670 ○ - -
19 mm - - 190 ○ - - - - - - 690 ○
22 mm - - 220 ○ - - - - - - - -
24 mm - - 240 ○ - - - - - - - -
27 mm - - 270 ○ - - - - - - - -
30 mm - - 300 ○ - - - - - - - -
32 mm - - 320 ○ - - - - - - - -
Source: Hahn+Kolb Werkzeuge GmbH
Technical data subject to change. www.iconridge.com
Availability subject to country specific rules and regulations. 384
