P. 31

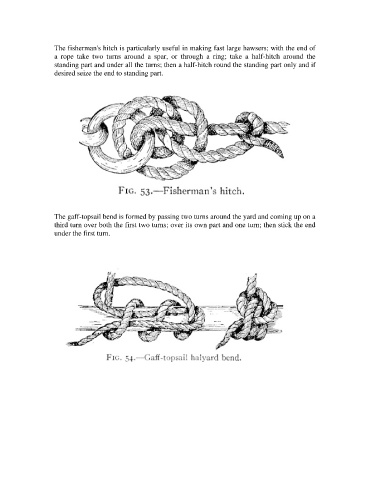

The fisherman's hitch is particularly useful in making fast large hawsers; with the end of
                   a rope take two turns around a spar, or through a ring; take a half-hitch around the
                   standing part and under all the turns; then a half-hitch round the standing part only and if
                   desired seize the end to standing part.


























                   The gaff-topsail bend is formed by passing two turns around the yard and coming up on a
                   third turn over both the first two turns; over its own part and one turn; then stick the end
                   under the first turn.
