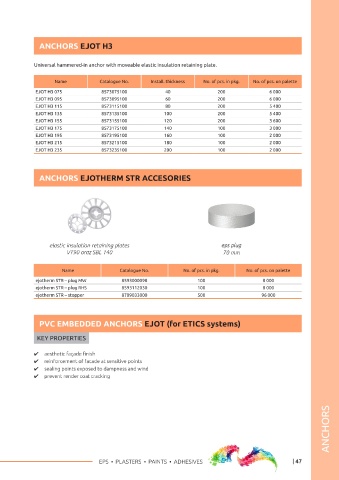

ANCHORS EJOTHERM STR H A2 ANCHORS EJOT H3

Screwed-in anchor with enhanced resistance to corrosion. Universal hammered-in anchor with moveable elastic insulation retaining plate.

Name Catalogue No. Install. thickness No. of pcs. in pkg. Name Catalogue No. Install. thickness No. of pcs. in pkg. No. of pcs. on palette

ejotherm STR H A2 080 8711080666 40 / -- 100 EJOT H3 075 8573075100 40 200 6 000
ejotherm STR H A2 100 8711100666 60 / 80 100 EJOT H3 095 8573095100 60 200 6 000
ejotherm STR H A2 120 8711120666 80 / 100 100 EJOT H3 115 8573115100 80 200 5 400
ejotherm STR H A2 140 8711140666 100 / 120 100 EJOT H3 135 8573135100 100 200 5 400
ejotherm STR H A2 160 8711160666 120 / 140 100 EJOT H3 155 8573155100 120 200 3 600
ejotherm STR H A2 180 8711180666 140 / 160 100 EJOT H3 175 8573175100 140 100 3 000
ejotherm STR H A2 200 8711200666 160 / 180 100 EJOT H3 195 8573195100 160 100 2 000
ejotherm STR H A2 220 8711220666 180 / 200 100 EJOT H3 215 8573215100 180 100 2 000
EJOT H3 235 8573235100 200 100 2 000

ANCHORS EJOT H1 ECO
ANCHORS EJOTHERM STR ACCESORIES

Surface mounted thermal dowel. It is a universal anchor to fix thermal insulation on building façades with an innovative
design of the pin which consists of two stable stems – steel and plastic ones.

Name Catalogue No. Install. thickness No. of pcs. in pkg. No. of pcs. on palette

EJOT H1 eco 095 8746095400 60 100 5 000
EJOT H1 eco 115 8746115400 80 100 4 000
EJOT H1 eco 135 8746135400 100 100 4 000
EJOT H1 eco 155 8746155400 120 100 3 000 elastic insulation retaining plates eps plug
EJOT H1 eco 175 8746175400 140 100 3 000 VT90 oraz SBL 140 70 mm
EJOT H1 eco 195 8746195400 160 100 3 000
EJOT H1 eco 215 8746215400 180 100 3 000 Name Catalogue No. No. of pcs. in pkg. No. of pcs. on palette
EJOT H1 eco 235 8746235400 200 100 2 000
EJOT H1 eco 255 8746255400 220 100 2 000 ejotherm STR – plug MW 8593000098 100 8 000
ejotherm STR – plug RHS 8593112030 100 8 000
EJOT H1 eco 275 8746275400 240 100 2 000
EJOT H1 eco 295 8746295400 260 100 2 000 ejotherm STR – stopper 8709033000 500 96 000

ANCHORS EJOT H4 ECO PVC EMBEDDED ANCHORS EJOT (for ETICS systems)

KEY PROPERTIES
Universal hammered-in anchor with a stable nail and optimized expansion zone.

4 aesthetic façade finish
Name Catalogue No. Install. thickness No. of pcs. in pkg. No. of pcs. on palette 4 reinforcement of facade at sensitive points
EJOT H4 eco 135 8748135460 100 100 3 000 4 sealing points exposed to dampness and wind
EJOT H4 eco 155 8748155460 120 100 3 000 4 prevent render coat cracking
EJOT H4 eco 175 8748175460 140 100 3 000
EJOT H4 eco 195 8748195460 160 100 3 000
EJOT H4 eco 215 8748215460 180 100 3 000
EJOT H4 eco 235 8748235460 200 100 2 000
ANCHORS
EJOT H4 eco 255 8748255460 220 100 2 000
EJOT H4 eco 275 8748275460 240 100 2 000
EJOT H4 eco 295 8748295460 260 100 2 000
