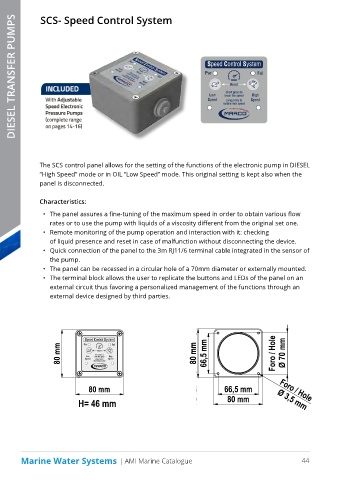

SCS- Speed Control System NEW! NEW!
DIESEL TRANSFER PUMPS
DYNAMIC TRIM CONTROL SYSTEMS
SCS - Speed Control System

INCLUDED

With Adjustable
Speed Electronic
Pressure Pumps
(complete range
on pages 14-16)

The SCS control panel allows for the setting of the functions of the electronic pump in DIESEL
“High Speed” mode or in OIL “Low Speed” mode. This original setting is kept also when the
panel is disconnected.

Characteristics:

• The panel assures a fine-tuning of the maximum speed in order to obtain various flow
rates or to use the pump with liquids of a viscosity different from the original set one.
• Remote monitoring of the pump operation and interaction with it: checking
of liquid presence and reset in case of malfunction without disconnecting the device.
• Quick connection of the panel to the 3m RJ11/6 terminal cable integrated in the sensor of
the pump.
• The panel can be recessed in a circular hole of a 70mm diameter or externally mounted.
• The terminal block allows the user to replicate the buttons and LEDs of the panel on an
external circuit thus favoring a personalized management of the functions through an
external device designed by third parties.

80 mm

80 mm

H= 46 mm
H=45
80 mm

80 mm
H= 46 mm
H=45
