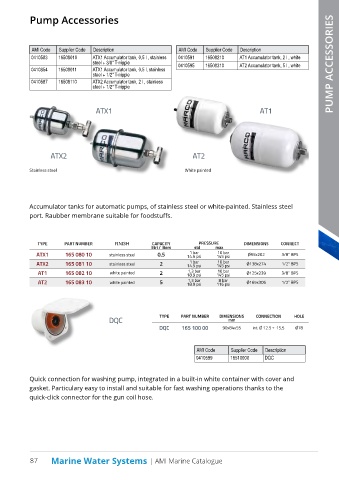

Pump Accessories

AMI Code Supplier Code Description AMI Code Supplier Code Description
0410583 16508010 ATX1 Accumulator tank, 0,5 l , stainless 0410591 16508210 AT1 Accumulator tank, 2 l , white
steel + 3/8" T-nipple 0410595 16508310 AT2 Accumulator tank, 5 l , white PUMP ACCESSORIES
0410854 16508011 ATX1 Accumulator tank, 0,5 l, stainless
steel + 1/2" T-nipple
0410587 16508110 ATX2 Accumulator tank, 2 l , stainless
steel + 1/2" T-nipple

ATX1 AT1

ATX2 AT2

Stainless steel White painted

Accumulator tanks for automatic pumps, of stainless steel or white-painted. Stainless steel
port. Raubber membrane suitable for foodstuffs.

TYPE PART NUMBER FINISH CAPACITY PRESSURE DIMENSIONS CONNECT
litri / liters std max
1 bar
10 bar

ATX1 165 080 10 stainless steel 0,5 14.5 psi 145 psi Ø95x202 3/8” BPS

10 bar
1 bar
ATX2 165 081 10 stainless steel 2 14.5 psi 145 psi Ø138x274 1/2” BPS
1,3 bar
10 bar
AT1 165 082 10 white painted 2 18.9 psi 145 psi Ø125x239 3/8” BPS
8 bar
1,3 bar
AT2 165 083 10 white painted 5 18.9 psi 116 psi Ø165x306 1/2” BPS
DQC TYPE PART NUMBER DIMENSIONS CONNECTION HOLE
mm
DQC 165 100 00 90x84x55 int. Ø 12.5 ÷ 15,5 Ø78

AMI Code Supplier Code Description
0410599 16510000 DQC
Quick connection for washing pump, integrated in a built-in white container with cover and gasket.
Particulary easy to install and suitable for fast washing operations thanks to the quick-click connector for the gun coil hose.
Quick connection for washing pump, integrated in a built-in white container with cover and
gasket. Particulary easy to install and suitable for fast washing operations thanks to the
quick-click connector for the gun coil hose.

87 Marine Water Systems | AMI Marine Catalogue
