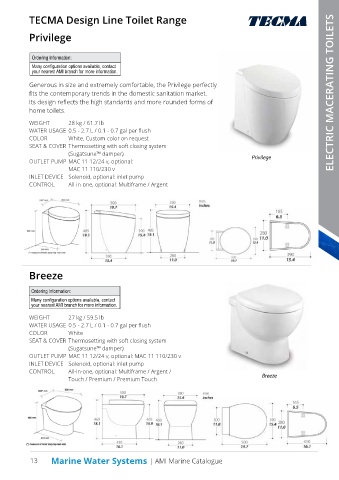

TECMA Design Line Toilet Range

Privilege

Ordering Information:
Many configuration options available, contact
your nearest AMI branch for more information.

Generous in size and extremely comfortable, the Privilege perfectly
fits the contemporary trends in the domestic sanitation market. ELECTRIC MACERATING TOILETS
Its design reflects the high standards and more rounded forms of
home toilets.

WEIGHT 28 kg / 61.7 lb
WATER USAGE 0.5 - 2.7 L / 0.1 - 0.7 gal per flush
COLOR White, Custom color on request
SEAT & COVER Thermosetting with soft closing system
(Sugatsune™ damper) Privilege
OUTLET PUMP MAC 11 12/24 v, optional:
MAC 11 110/230 v
INLET DEVICE Solenoid, optional: inlet pump
PRODUCT INFORMATION SHEET
CONTROL All-in-one, optional: Multiframe / Argent PRIVILEGE

Breeze
Product line Design line
Collection PRIVILEGE
Code Depending on configuration – see code chart for details
Ordering Information:
Many configuration options available, contact OPTIONAL CONFIGURATION
STANDARD CONFIGURATION
your nearest AMI branch for more information.
Outlet pump* MAC 11 (DC power: 12V- 24 V) MAC11 (AC power: 220-240 V 50 or 60 Hz-110-125V 60Hz)
Seat & Cover Thermosetting with soft closing system:
WEIGHT 27 kg / 59.5 lb
Sugatsune dampers
WATER USAGE 0.5 - 2.7 L / 0.1 - 0.7 gal per flush
Color White Custom color: any RAL color including gold or platinum plating
COLOR
Control Panel White All-in-one (1 or 2 buttons) Multiframe(1 or 2 buttons) / Argent(1 - 2 buttons) / Touch (1 - 2 buttons)
SEAT & COVER Thermosetting with soft closing system

(Sugatsune™ damper)
OUTLET PUMP MAC 11 12/24 v, optional: MAC 11 110/230 v
INLET DEVICE Solenoid, optional: inlet pump
PRODUCT INFORMATION SHEET
BREEZE
CONTROL All-in-one, optional: Multiframe / Argent / Premium (smart flush software) / Premium Touch (smart flush sw)

Touch / Premium / Premium Touch Breeze

Water inlet device* Solenoid (centralized fresh water system) Inlet pump (single raw water system)
Bidet - Matching bidet see PIS Privilege Bidet
- Integrated bidet spray nozzle function with wall mounted faucet
Water consumption 0.5 / 2.7 l (0.1- 0.7 gal) per flush. The user can easily adjust the water amount.
Weight 27.0 Kg (59.52 lb) (fully assembled)
*see technical data for details

Technical data:
WIRE GAUGE SIZE CHART
Distance from source* is:
13
1-2 m
> 2m
Design line
Product line Marine Water Systems | AMI Marine Catalogue
9 AWG (6.63 mm2)
11 AWG (4.17 mm2)
12V DC
Collection 24V DC BREEZE 13 AWG (2.63 mm2) 11 AWG (4.17 mm2)
110-125V AC 60Hz 18 AWG (0.82 mm2) 18 AWG (0.82 mm2)
Code 220-240V AC 50Hz or 60 Hz 18 AWG (0.82 mm2) 18 AWG (0.82 mm2)
Depending on configuration – see code chart for details
*Distance measured assumed power and ground wires

STANDARD CONFIGURATION OPTIONAL CONFIGURATION
MAC 11 OUTLET 12V DC 24V DC 110-125V AC 220-240V AC
Outlet pump* MAC 11 (DC power: 12V- 24 V) 60Hz 50Hz or 60 Hz
MAC11 (AC power: 220-240 V 50 or 60 Hz / -110-125V 60Hz)
PUMP
Fuse recommended 40A 30A 8A 5A
Seat & Cover Thermosetting with soft closing
Max 270L/min 71.3 gpm
Pump performance Max vertical head 11mt 36.1 ft
system: sugatzune dampers. Frontal
removing hinges system
Outlet Duck bill valve (male) Max horizontal distance 90 mt 295.3 ft
1.5" / required ID 1.5" (38.5 mm)
Color White Custom color: any RAL color including gold or platinum plating
INLET SOLENOID Centralized 110-125V AC 220-240V AC INLET PUMP 24V DC
12V DC
60Hz
12V DC
Control Panel system All-in-one (1 or 2 buttons) 50Hz or 60 Hz Multiframe(1 or 2 buttons) / Argent(1 - 2 buttons) / Touch (1 - 2 buttons)
24V DC
Single system (Raw

Power consumption 9.5 W 10 W 6 W 6 W Fuse 8 A 4 A
Working pressure recommended 3 bar 3 bar 3 bar 3 bar Pressure 45 PSI - 3 bar
Solenoid Inlet and Outlet (threaded female) 1/2" Water flow 12 l/min 3.17 gmp
Toilet inlet hose fitting (barbed) 1/2" Toilet inlet hose fitting (barbed) 1/2"

Premium (smart flush software) / Premium Touch (smart flush sw)
Notes: Install using the Fischer L-bracket provided / use stainless steel fastener
Box dimension 73cm x 50 cm x 67 cm (LxWxH)
Box weight 33 Kg
Packaging (units/pallet) 12
Revision : V09 Water inlet device* Solenoid (centralized fresh water Inlet pump (single raw water system)

system)

- Matching bidet see PIS Breeze Bidet
Bidet
- Integrated bidet spray nozzle function with wall mounted faucet

0.5 / 2.7 l (0.1- 0.7 gal) per flush. The user can easily adjust the water amount.
Water consumption Provided as a guide only, Thetford reserves the right to change specification without prior warning
Weight 26.0 Kg (57.3 lb) (fully assembled)
*see technical data for details
Technical data:
WIRE GAUGE SIZE CHART
Distance from source* is:
1-2 m > 2m
12V DC 11 AWG (4.17 mm2) 9 AWG (6.63 mm2)
24V DC 13 AWG (2.63 mm2) 11 AWG (4.17 mm2)
110-125V AC 60Hz 18 AWG (0.82 mm2) 18 AWG (0.82 mm2)
220-240V AC 50Hz or 60 Hz 18 AWG (0.82 mm2) 18 AWG (0.82 mm2)
*Distance measured assumed power and ground wires
MAC 11 OUTLET 12V DC 24V DC 110-125V AC 220-240V AC
PUMP 60Hz 50Hz or 60 Hz
Fuse recommended 40A 30A 8A 5A
Max 270L/min 71.3 gpm
Pump performance Max vertical head 11mt 36.1 ft
Max horizontal distance 90 mt 295.3 ft
Outlet Duck bill valve (male) 1.5" / required ID 1.5" (38.5 mm)
INLET SOLENOID Centralized 12V DC 24V DC 110-125V AC 220-240V AC INLET PUMP
12V DC
24V DC
system 60Hz 50Hz or 60 Hz Single system (Raw
Power consumption 9.5 W 10 W 6 W 6 W Fuse 8 A 4 A
Working pressure recommended 3 bar 3 bar 3 bar 3 bar Pressure 45 PSI - 3 bar
Solenoid Inlet and Outlet (threaded female) 1/2" Water flow 12 l/min 3.17 gmp
Toilet inlet hose fitting (barbed) 1/2" Toilet inlet hose fitting (barbed) 1/2"

Notes: Install using the Fischer L-bracket provided / use stainless steel fastener
Fast removing hinges. The seat and cover can be dismounted without moving the toilet.
Box dimension 73cm x 50 cm x 67 cm (LxWxH)
Box weight 32 Kg
Packaging (units/pallet) 12

Revision : V09 Provided as a guide only, Thetford reserves the right to change specification without prior warning
