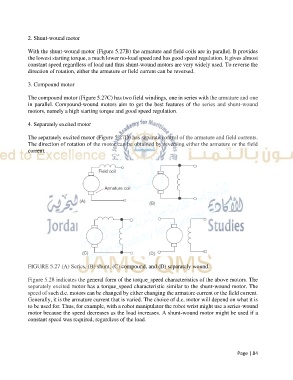

2. Shunt-wound motor
With the shunt-wound motor (Figure 5.27B) the armature and field coils are in parallel. It provides
the lowest starting torque, a much lower no-load speed and has good speed regulation. It gives almost
constant speed regardless of load and thus shunt-wound motors are very widely used. To reverse the
direction of rotation, either the armature or field current can be reversed.
3. Compound motor
The compound motor (Figure 5.27C) has two field windings, one in series with the armature and one
in parallel. Compound-wound motors aim to get the best features of the series and shunt-wound
motors, namely a high starting torque and good speed regulation.
4. Separately excited motor
The separately excited motor (Figure 5.27D) has separate control of the armature and field currents.
The direction of rotation of the motor can be obtained by reversing either the armature or the field
current.

FIGURE 5.27 (A) Series, (B) shunt, (C) compound, and (D) separately wound.
Figure 5.28 indicates the general form of the torque_speed characteristics of the above motors. The
separately excited motor has a torque_speed characteristic similar to the shunt-wound motor. The
speed of such d.c. motors can be changed by either changing the armature current or the field current.
Generally, it is the armature current that is varied. The choice of d.c. motor will depend on what it is
to be used for. Thus, for example, with a robot manipulator the robot wrist might use a series-wound
motor because the speed decreases as the load increases. A shunt-wound motor might be used if a
constant speed was required, regardless of the load.

Page | 84
