P. 31

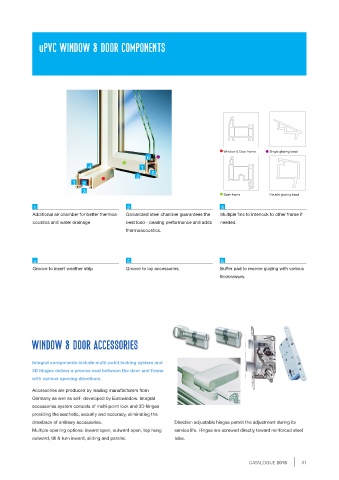

uPVC WINDOW & DOOR COMPONENTS
Window & Door frame Single glazing bead
6
4 1
5
4
1 2
3
Sash frame Double glazing bead
1 2 3
Additional air chamber for better thermoa- Galvanized steel chamber guarantees the Multiple fins to interlock to other frame if
coustics and water drainage best load - bearing performance and adds needed.
thermoacoustics.
4 5 6
Groove to insert weather strip Groove to lay accessories Buffer pad to receive glazing with various
thicknesses.
WINDOW & DOOR ACCESSORIES
Integral components include multi-point locking system and
3D hinges deliver a precise seal between the door and frame
with various opening directions.
Accessories are produced by leading manufacturers from
Germany as well as self- developed by Eurowindow. Integral
accessories system consists of multi-point lock and 3D hinges
providing the aesthetic, security and accuracy, eliminating the
drawback of ordinary accessories. Direction adjustable hinges permit the adjustment during its
Multiple opening options: inward open, outward open, top hung service life. Hinges are screwed directly toward reinforced steel
outward, tilt & turn inward, sliding and parallel. tube.
CATALOGUE 2018 31
