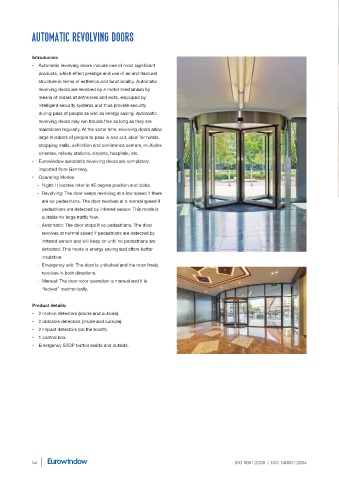

AUTOMATIC REVOLVING DOORS

Introducion:
• Automatic revolving doors include one of most significant
products, which effect prestige and use of an architectural
structure in terms of esthetics and functionality. Automatic
revolving doors are revolved by a motor mechanism by
means of radars at entrances and exits, equipped by
intelligent security systems and thus provide security
during pass of people as well as energy saving. Automatic
revolving doors may run trouble free as long as they are
maintained regularly. At the same time, revolving doors allow
large numbers of people to pass in and out, ideal for hotels,
shopping malls, exhibition and conference centers, multiplex
cinemas, railway stations, airports, hospitals, etc.
• Eurowindow automatic revolving doors are completely
imported from Germany.
• Operating Modes
- Night: It locates rotor in 45 degree position and locks.
- Revolving: The door keeps revolving at a low speed if there
are no pedestrians. The door revolves at a normal speed if
pedestrians are detected by infrared sensor. This mode is
suitable for large traffic flow.
- Automatic: The door stops if no pedestrians. The door
revolves at normal speed if pedestrians are detected by
infrared sensor and will keep on until no pedestrians are
detected. This mode is energy saving and offers better
insulation.
- Emergency exit: The door is unlocked and the rotor freely
revolves in both directions.
- Manual: The door rotor operation is manual and it is
“locked” mechanically.

Product details:
• 2 motion detectors (inside and outside).
• 2 obstacle detectors (inside and outside).
• 2 impact detectors (on the booth).
• 1 control box.
• Emergency STOP button inside and outside.
