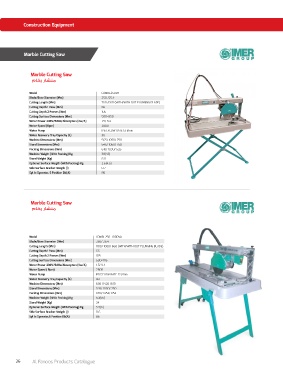

Construction Equipment

Marble Cutting Saw

Marble Cutting Saw COMBI-250VA
‫منشار رخام‬ 250 /25,4
760 /660 (WITH/WITH OUT PLUNGING BLADE)
Model 66
Blade/Bore Diameter (Mm) 105
Cutting Length (Mm) 500×850
Cutting Depth 1 Pass (Mm) 1.5/ 9.4
Cutting Depth 2 Passes (Mm) 2800
Cutting Surface Dimensions (Mm) IP67,FLOW RATE 13 I/min
Motor Power 230V/50Hz/Absorption (Kw/A) 36
Motor Speed (Rpm) 565/ 1050/ 750
Water Pump 545/ 1060/ 750
Water Recovery Tray Capacity (L) 610/ 1090/ 525
Machine Dimensions (Mm) 38(43)
Stand Dimensions (Mm) 8.8
Packing Dimensions (Mm) 2.6(4.5)
Machine Weight (With Packing) Kg 0.7
Stand Weight (Kg) 86
Optional Surface Weigth (With Packing) Kg
Side Surface Bracket Weigth (I)
Spl In Operator, S Position Db(A)

Marble Cutting Saw
‫منشار رخام‬

Model COMBI-250- 1000VA
Blade/Bore Diameter (Mm) 250/ 25,4
Cutting Length (Mm) 1100/ 1000/ 660 (WITH/WITH OUT PLUNGING BLADE)
Cutting Depth 1 Pass (Mm) 66
Cutting Depth 2 Passes (Mm) 105
Cutting Surface Dimensions (Mm) 500×1115
Motor Power 230V/50Hz/Absorption (Kw/A) 1.5/ 9.4
Motor Speed ( Rpm) 2800
Water Pump IP67,FLOW RATE 13 I/min
Water Recovery Tray Capacity (L) 40
Machine Dimensions (Mm) 636 /1420 /619
Stand Dimensions (Mm) 545/ 1060/ 750
Packing Dimensions (Mm) 669/ 1454/ 654
Machine Weight (With Packing) Kg 53(65)
Stand Weight (Kg) 24
Optional Surface Weigth (With Packing) Kg 5.5(6)
Side Surface Bracket Weigth (I) 0.6
Spl In Operator,S Position Db(A) 86

26 Al Fanoos Products Catalogue
