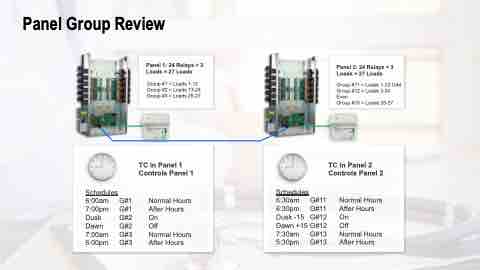

Panel Group Review
Schedules 6:00am G#1 7:00pm G#1 Dusk G#2 Dawn G#2 7:00am G#3 6:00pm G#3
Panel 1: 24 Relays + 3 Loads = 27 Loads
Group #1 = Loads 1-12 Group #2 = Loads 13-24 Group #3 = Loads 25-27
TC in Panel 1 Controls Panel 1
Normal Hours After Hours On
Off
Normal Hours After Hours
Schedules 6:30am 6:30pm Dusk -15 Dawn +15 7:30am 5:30pm
Panel 2: 24 Relays + 3 Loads = 27 Loads
Group #11 = Loads 1-23 Odd Group #12 = Loads 2-24 Even
Group #13 = Loads 25-27
TC in Panel 2 Controls Panel 2
G#11 Normal Hours G#11 After Hours G#12 On
G#12 Off
G#13 Normal Hours G#13 After Hours
