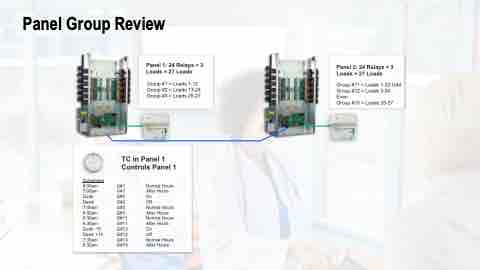

Panel Group Review
Panel 1: 24 Relays + 3 Loads = 27 Loads
Group #1 = Loads 1-12 Group #2 = Loads 13-24 Group #3 = Loads 25-27
TC in Panel 1 Controls Panel 1
Panel 2: 24 Relays + 3 Loads = 27 Loads
Group #11 = Loads 1-23 Odd Group #12 = Loads 2-24 Even
Group #13 = Loads 25-27
Schedules
6:00am G#1 7:00pm G#1 Dusk G#2 Dawn G#2 7:00am G#3 6:00pm G#3 6:30am G#11 6:30pm G#11 Dusk -15 G#12 Dawn +15 G#12 7:30am G#13 5:30pm G#13
Normal Hours After Hours On
Off
Normal Hours After Hours Normal Hours After Hours On
Off
Normal Hours After Hours
