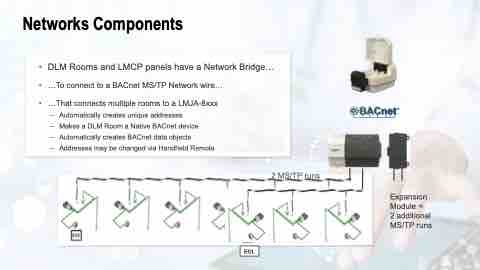

Networks Components
• DLM Rooms and LMCP panels have a Network Bridge...
• ...To connect to a BACnet MS/TP Network wire...
• ...That connects multiple rooms to a LMJA-8xxx
– Automatically creates unique addresses
– Makes a DLM Room a Native BACnet device
– Automatically creates BACnet data objects
– Addresses may be changed via Handheld Remote
2 MS/TP runs
Expansion Module =
2 additional MS/TP runs
EOL
