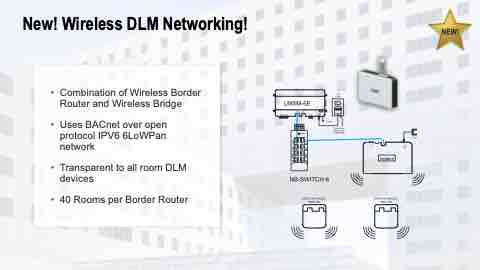

New! Wireless DLM Networking!
NEW!
• Combination of Wireless Border Router and Wireless Bridge
• Uses BACnet over open protocol IPV6 6LoWPan network
• Transparent to all room DLM devices
• 40 Rooms per Border Router
LMSM-3E LMSM-6E
115V Outlet
Ground
RS-485 RS-485 S+- S+-
RS-485
LAN 2 (SEC)
LAN 1 (PRI)
USB
POWER S+- INPUT
COHMIHIB Power
12 34 56 78
Transformer Supplied with LMSM-603
DLM Cat 5e Adaptor
BA
24VDC Buttons USB LAN 1 POWER
INPUT
legrand
NB-SWITCH-8
WIRELESS BRIDGE LMBC-600
WIRELESS BRIDGE LMBC-600
