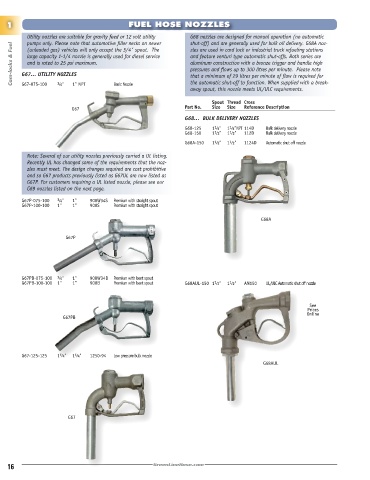

1 FUEL HOSE NOZZLES

Utility nozzles are suitable for gravity feed or 12 volt utility G68 nozzles are designed for manual operation (no automatic
shut-off) and are generally used for bulk oil delivery. G68A noz-
pumps only. Please note that automotive filler necks on newer
Cam-locks & Fuel Part No. Spout Thread Cross PRICE and feature venturi type automatic shut-offs. Both series are
(unleaded gas) vehicles will only accept the 3/4" spout. The
zles are used in card lock or industrial truck refueling stations
large capacity 1-1/4 nozzle is generally used for diesel service
and is rated to 25 psi maximum.
aluminum construction with a bronze trigger and handle high
Reference Description
EACH
Size
Size
pressures and flows up to 300 litres per minute. Please note
G67… UTILITY NOZZLES
that a minimum of 29 litres per minute of flow is required for
the automatic shut-off to function. When supplied with a break-
1" NPT
3 ⁄4"
G67-075-100
Basic Nozzle
away spout, this nozzle meets UL/ULC requirements.
Spout Thread Cross
G67 Part No. Size Size Reference Description
G68… BULK DELIVERY NOZZLES
G68-125 1 1 ⁄4" 1 1 ⁄4"NPT 114D Bulk delivery nozzle
G68-150 1 1 ⁄2" 1 1 ⁄2" 112D Bulk delivery nozzle
G68A-150 1 1 ⁄2" 1 1 ⁄2" 1124D Automatic shut off nozzle
Note: Several of our utility nozzles previously carried a UL listing.
Recently UL has changed some of the requirements that the noz-
zles must meet. The design changes required are cost prohibitive
and so G67 products previously listed as G67UL are now listed as
G67P. For customers requiring a UL listed nozzle, please see our
G69 nozzles listed on the next page.
G67P-075-100 3 ⁄4" 1" 900W34S Premium with straight spout
G67P-100-100 1" 1" 900S Premium with straight spout

G68A

G67P

G67PB-075-100 3 ⁄4" 1" 900W34B Premium with bent spout
G67PB-100-100 1" 1" 900B Premium with bent spout G68AUL-150 1 1 ⁄2" 1 1 ⁄2" AN150 UL/ULC Automatic shut off nozzle

See
Prices
G67PB Online

G67-125-125 1 1 ⁄4" 1 1 ⁄4" 1250-94 Low pressure bulk nozzle
G68AUL

G67
