P. 27

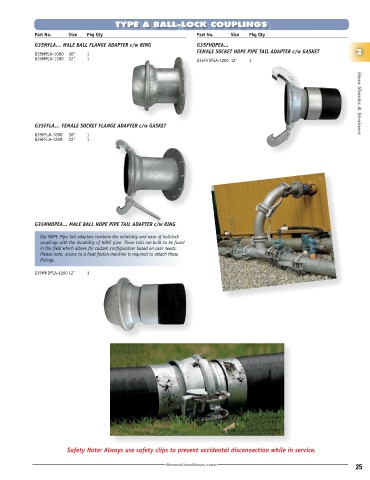

TYPE A BALL-LOCK COUPLINGS
Part No. Size Pkg Qty Part No. Size Pkg Qty
G35MFLA… MALE BALL FLANGE ADAPTER c/w RING G35FHDPEA...
FEMALE SOCKET HDPE PIPE TAIL ADAPTER c/w GASKET 2
G35MFLA-1000 10" 1
G35MFLA-1200 12" 1 G35FHDPEA-1200 12" 1
G35FFLA… FEMALE SOCKET FLANGE ADAPTER c/w GASKET Hose Shanks & Strainers
G35FFLA-1000 10" 1
G35FFLA-1200 12" 1
G35MHDPEA... MALE BALL HDPE PIPE TAIL ADAPTER c/w RING
Our HDPE Pipe Tail adapters combine the reliability and ease of ball-lock
couplings with the durability of HDPE pipe. These tails are built to be fused
in the field which allows for custom configuration based on user needs.
Please note, access to a heat fusion machine is required to attach these
fittings.
G35MHDPEA-1200 12" 1
Safety Note: Always use safety clips to prevent accidental disconnection while in service.
25
