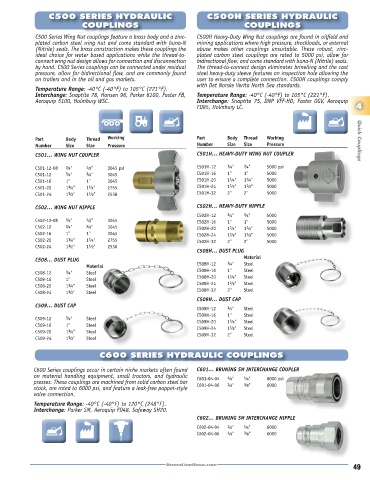

C500 SERIES HYDRAULIC C500H SERIES HYDRAULIC
COUPLINGS COUPLINGS

C500 Series Wing Nut couplings feature a brass body and a zinc- C500H Heavy-Duty Wing Nut couplings are found in oilfield and
plated carbon steel wing nut and come standard with buna-N mining applications where high pressure, shockloads, or external
(Nitrile) seals. The brass construction makes these couplings the abuse makes other couplings unsuitable. These robust, zinc-
ideal choice for water based applications while the thread-to- plated carbon steel couplings are rated to 5000 psi, allow for
connect wing nut design allows for connection and disconnection bidirectional flow, and come standard with buna-N (Nitrile) seals.
by hand. C500 Series couplings can be connected under residual The thread-to-connect design eliminates brinelling and the cast
pressure, allow for bidirectional flow, and are commonly found steel heavy-duty sleeve features an inspection hole allowing the
on trailers and in the oil and gas markets. user to ensure a complete connection. C500H couplings comply
with Det Norske Verita North Sea standards.
Temperature Range: -40°C (-40°F) to 105°C (221°F).
Interchange: Snaptite 78, Hansen 96, Parker 6100, Faster FB, Temperature Range: -40°C (-40°F) to 105°C (221°F).
Aeroquip 5100, Holmbury WSC. Interchange: Snaptite 75, DNP VFF-HD, Faster OGV, Aeroquip
FD85, Holmbury LC. 4

Part Body Thread Working Part Body Thread Working Quick Couplings
Number Size Size Pressure Number Size Size Pressure
C501… WING NUT COUPLER C501H… HEAVY-DUTY WING NUT COUPLER

C501-12-08 3 ⁄4" 1 ⁄2" 3045 psi C501H-12 3 ⁄4" 3 ⁄4" 5000 psi
C501-12 3 ⁄4" 3 ⁄4" 3045 C501H-16 1" 1" 5000
C501-16 1" 1" 3045 C501H-20 1 1 ⁄4" 1 1 ⁄4" 5000
C501-20 1 1 ⁄4" 1 1 ⁄4" 2755 C501H-24 1 1 ⁄2" 1 1 ⁄2" 5000
C501-24 1 1 ⁄2" 1 1 ⁄2" 2538 C501H-32 2" 2" 5000
C502… WING NUT NIPPLE C502H… HEAVY-DUTY NIPPLE
C502H-12 3 ⁄4" 3 ⁄4" 5000
C502-12-08 3 ⁄4" 1 ⁄2" 3045 C502H-16 1" 1" 5000
C502-12 3 ⁄4" 3 ⁄4" 3045 C502H-20 1 1 ⁄4" 1 1 ⁄4" 5000
C502-16 1" 1" 3045 C502H-24 1 1 ⁄2" 1 1 ⁄2" 5000
C502-20 1 1 ⁄4" 1 1 ⁄4" 2755 C502H-32 2" 2" 5000
C502-24 1 1 ⁄2" 1 1 ⁄2" 2538
C508H… DUST PLUG
C508… DUST PLUG Material
Material C508H-12 3 ⁄4" Steel
C508-12 3 ⁄4" Steel C508H-16 1" Steel
C508-16 1" Steel C508H-20 1 1 ⁄4" Steel
C508-20 1 1 ⁄4" Steel C508H-24 1 1 ⁄2" Steel
C508-24 1 1 ⁄2" Steel C508H-32 2" Steel
C509H… DUST CAP
C509… DUST CAP
C509H-12 3 ⁄4" Steel
C509H-16 1" Steel
C509-12 3 ⁄4" Steel C509H-20 1 1 ⁄4" Steel
C509-16 1" Steel C509H-24 1 1 ⁄2" Steel
C509-20 1 1 ⁄4" Steel C509H-32 2" Steel
C509-24 1 1 ⁄2" Steel

C600 SERIES HYDRAULIC COUPLINGS

C600 Series couplings occur in certain niche markets often found C601… BRUNING SM INTERCHANGE COUPLER
on material handling equipment, small tractors, and hydraulic C601-04-04 1 ⁄4" 1 ⁄4" 6000 psi
presses. These couplings are machined from solid carbon steel bar 1 ⁄4" 3 ⁄8"
stock, are rated to 6000 psi, and feature a leak-free poppet-style C601-04-06 6000
valve connection.
Temperature Range: -40°C (-40°F) to 120°C (248°F).
Interchange: Parker SM, Aeroquip FD48, Safeway SH20.
C602… BRUNING SM INTERCHANGE NIPPLE
C602-04-04 1 ⁄4" 1 ⁄4" 6000
C602-04-06 1 ⁄4" 3 ⁄8" 6000
