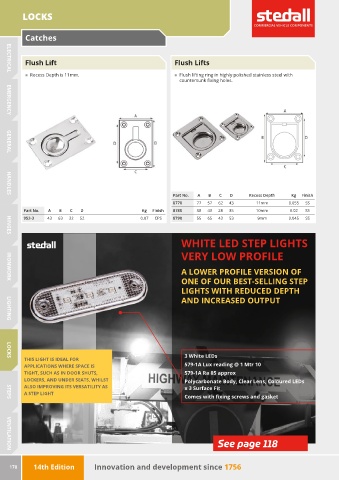

Page 180 - Stedall Parts Catalogue 14th Edition

LOCKS

Catches

Flush Lift Flush Lifts

ELECTRICAL
„ Recess Depth is 11mm. „ Flush lifting ring in highly polished stainless steel with
countersunk fixing holes.

EMERGENCY

GENERAL

Part No. A B C D Recess Depth Kg Finish
HANDLES
8770 77 57 62 43 11mm 0.055 SS
Part No. A B C D Kg Finish 8780 38 43 28 35 10mm 0.02 SS

952-3 43 63 32 52 0.07 CPS 8790 55 65 43 53 9mm 0.045 SS

HINGES
WHITE LED STEP LIGHTS
VERY LOW PROFILE

A LOWER PROFILE VERSION OF
ONE OF OUR BEST-SELLING STEP
IRONWORK
LIGHTS WITH REDUCED DEPTH
AND INCREASED OUTPUT

LIGHTING

3 White LEDs
THIS LIGHT IS IDEAL FOR
LOCKS
APPLICATIONS WHERE SPACE IS 579-1A Lux reading @ 1 Mtr 10
TIGHT, SUCH AS IN DOOR SHUTS, 579-1A Ra 85 approx
LOCKERS, AND UNDER SEATS, WHILST Polycarbonate Body, Clear Lens, Coloured LEDs
ALSO IMPROVING ITS VERSATILITY AS x 3 Surface Fit
A STEP LIGHT
Comes with fixing screws and gasket
STEPS

See page 118

VENTILATION

178 14th Edition Innovation and development since 1756
