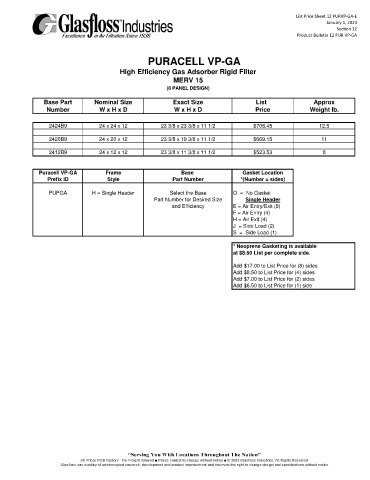

Page 172 - _00'2023 FULL CATALOG

List Price Sheet 12 PURVP-GA-E
January 1, 2023
Section 12
Product Bulletin 12 PUR VP-GA

PURACELL VP-GA
High Efficiency Gas Adsorber Rigid Filter
MERV 15
(8 PANEL DESIGN)
m
Base Part Noinal Size Exact Size List Approx
Nuber W x H x D W x H x D Price Weight lb.
m
2424B9 24 x 24 x 12 23 3/8 x 23 3/8 x 11 1/2 $708.45 12.5

2420B9 24 x 20 x 12 23 3/8 x 19 3/8 x 11 1/2 $669.15 11

2412B9 24 x 12 x 12 23 3/8 x 11 3/8 x 11 1/2 $523.53 8

Puracell VP-GA Frame Base Gasket Location
Prefix ID Style Part Number *(Number = sides)

PUPGA H = Single Header Select the Base O = No Gasket
Part Number for Desired Size Single Header
and Efficiency E = Air Entry/Exit (8)
F = Air Entry (4)
H = Air Exit (4)
J = Side Load (2)
S = Side Load (1)

* Neoprene Gasketing is available
at $8.50 List per complete side.
Add $17.00 to List Price for (8) sides
Add $8.50 to List Price for (4) sides
Add $7.00 to List Price for (2) sides
Add $6.50 to List Price for (1) side
