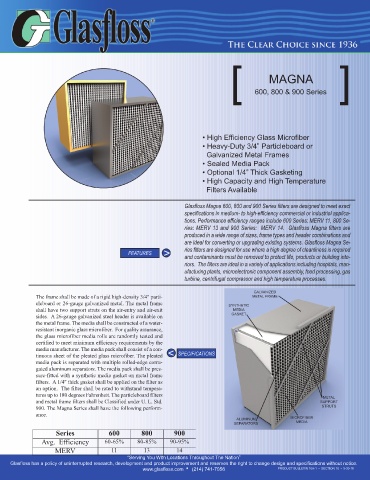

Page 109 - 2021'03 FULL CATALOG

[ ]
M AG A
N
600, 800 & 900 Series

H
M
• igh Efficiency Glass icrofiber
• eavy-D uty 3/4” Particleboard or
H
M
Galvanized etal Fram es
M
• Sealed edia Pack
• Optional 1/4” Thick Gasketing
• igh apacity and igh Tem perature
C
H
H
Filters Available
Glasfloss agna 600, 800 and 900 Series filters are designed to eet exact
m
M
specifications in edium - to high-efficiency com m ercial or industrial applica-
m
m
tions. Perfor ance efficiency ranges include 600 Series: M ERV 11, 800 Se-
ries: M ERV 13 and 900 Series: M ERV 14. Glasfloss M agna filters are
m
m
produced in a wide range of sizes, fra e types and header co binations and
are ideal for converting or upgrading existing system s. Glasfloss agna Se-
M
FEATURES > ries filters are designed for use where a high degree of cleanliness is required
and contam inants m ust be rem oved to protect life, products or building inte-
riors. The filters are ideal in a variety of applications including hospitals, an-
m
ufacturing plants, icroelectronic co ponent asse bly, food processing, gas
m
m
m
turbine, centrifugal com pressor and high tem perature processes.
GALVA IZE D
N
R
The frame shall be made of a rigid high-density 3/4" parti- M ETAL F A E
M
cleboard or 26-gauge galvanized metal. The metal frame
H
N
SY T ETI C
shall have tw o support struts on the air-entry and air-exit M E IA
D
A
sides. 26-gauge galvanized steel header is available on GASKET
the metal frame. The media shall be constructed of a ater-
w
resistant inorganic glass microfiber. For quality assurance,
the glass microfiber media rolls are randomly tested and
certified to meet minimum efficiency requirements by the
media manufacturer. The media pack shall consist of a con-
tinuous sheet of the pleated glass microfiber. The pleated < SPECIFICATIONS
media pack is separated w ith multiple rolled-edge corru-
gated aluminum separators. The media pack shall be pres-
sure-fitted w ith a synthetic media gasket on metal frame
filters. 1/4" thick gasket shall be applied on the filter as
A
an option. The filter shall be rated to w ithstand tempera-
tures up to 180 degrees Fahrenheit. The particleboard filters
M ETAL
U
and metal frame filters shall be Classified under . L. Std. S PPO T
R
U
R
900. The M agna Series shall have the follo ing perform- ST U TS
w
ance.
C
N
ALU M I U M M I R OFIBE R
D
SEPA ATO S M E IA
R
R
Series 600 800 900
A vg. Efficiency 60-65 % 80-85 % 90-95 %
M ER V 11 13 14
N
“Serving You With Locations Throughout The ation”
Glasfloss has a policy of uninterrupted research, develop ent and product i prove ent and reserves the right to change design and specifications ithout notice.
m
m
m
w
N
R
w w w .glasfloss.com · (214) 741-7056 P O U C T B LLETI 10A-1 • SEC TIO 10 • 5-30-18
