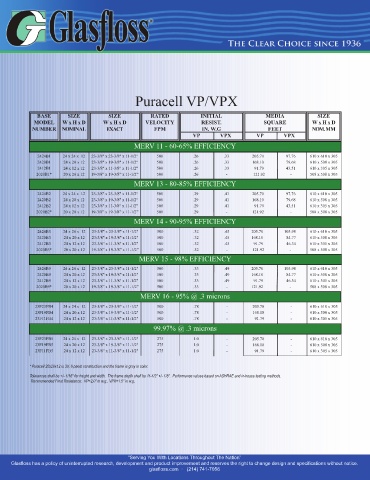

Page 151 - 2021'03 FULL CATALOG

Puracell P/ PX
V
V
D
B SE SIZE SIZE R A TE D IN ITIA L ME IA SIZE
A
U
D
C
MO EL W x H x D W x H x D V ELO IT Y R ESIST. SQ A R E W x H x D
N
N U MBE R N OMI A L E A C T FPM IN . .G FEET N OM.MM
X
W
V P P X V P P
V
X
V
%
M ER 11 - 60-65 EFFICIE C Y
N
V
2424B1 24 x 24 x 12 23-3/8" x 23-3/8" x 11-1/2" 500 .26 .33 205.70 97.76 610 x 610 x 305
2420B1 24 x 20 x 12 23-3/8" x 19-3/8" x 11-1/2" 500 .26 .33 168.10 79.68 610 x 508 x 305
2412B1 24 x 12 x 12 23-3/8" x 11-3/8" x 11-1/2" 500 .26 .33 91.79 43.51 610 x 305 x 305
2020B1* 20 x 20 x 12 19-3/8” x 19-3/8” x 11-1/2” 500 .26 - 121.92 - 508 x 508 x 305
%
N
M ER 13 - 80-85 EFFICIE C Y
V
2424B2 24 x 24 x 12 23-3/8" x 23-3/8" x 11-1/2" 500 .29 .41 205.70 97.76 610 x 610 x 305
2420B2 24 x 20 x 12 23-3/8" x 19-3/8" x 11-1/2" 500 .29 .41 168.10 79.68 610 x 508 x 305
2412B2 24 x 12 x 12 23-3/8" x 11-3/8" x 11-1/2" 500 .29 .41 91.79 43.51 610 x 305 x 305
2020B2* 20 x 20 x 12 19-3/8” x 19-3/8” x 11-1/2” 500 .29 - 121.92 - 508 x 508 x 305
M ER 14 - 90-95 EFFICIE C Y
%
V
N
2424B3 24 x 24 x 12 23-3/8" x 23-3/8" x 11-1/2" 500 .32 .45 205.70 103.98 610 x 610 x 305
2420B3 24 x 20 x 12 23-3/8" x 19-3/8" x 11-1/2" 500 .32 .45 168.10 84.77 610 x 508 x 305
2412B3 24 x 12 x 12 23-3/8" x 11-3/8" x 11-1/2" 500 .32 .45 91.79 46.34 610 x 305 x 305
2020B3* 20 x 20 x 12 19-3/8” x 19-3/8” x 11-1/2” 500 .32 - 121.92 - 508 x 508 x 305
N
V
%
M ER 15 - 98 EFFICIE C Y
2424B9 24 x 24 x 12 23-3/8" x 23-3/8" x 11-1/2" 500 .33 .49 205.70 103.98 610 x 610 x 305
2420B9 24 x 20 x 12 23-3/8" x 19-3/8" x 11-1/2" 500 33 .49 168.10 84.77 610 x 508 x 305
2412B9 24 x 12 x 12 23-3/8" x 11-3/8" x 11-1/2" 500 .33 .49 91.79 46.34 610 x 305 x 305

2020B9* 20 x 20 x 12 19-3/8” x 19-3/8” x 11-1/2” 500 .33 - 121.92 - 508 x 508 x 305
V
%
M ER 16 - 95 @ .3 microns
23F23FB4 24 x 24 x 12 23-3/8" x 23-3/8" x 11-1/2" 500 .78 - 205.70 - 610 x 610 x 305
23F19FB4 24 x 20 x 12 23-3/8" x 19-3/8" x 11-1/2" 500 .78 - 168.10 - 610 x 508 x 305
23F11FB4 24 x 12 x 12 23-3/8" x 11-3/8" x 11-1/2" 500 .78 - 91.79 - 610 x 305 x 305
99.97 @ .3 microns
%
23F23FB5 24 x 24 x 12 23-3/8" x 23-3/8" x 11-1/2" 275 1.0 - 205.70 - 610 x 610 x 305
23F19FB5 24 x 20 x 12 23-3/8" x 19-3/8" x 11-1/2" 275 1.0 - 168.10 - 610 x 508 x 305
23F11FB5 24 x 12 x 12 23-3/8" x 11-3/8" x 11-1/2" 275 1.0 - 91.79 - 610 x 305 x 305
* Puracell 20x20x12 is 3V, 6 panel construction and the fram e is gray in color.
m
Tolerances shall be +/- 1/16” for height and width. The fram e depth shall be 11-1/2” +/- 1/8”. Perfor ance values based on ASHRAE and in-house testing ethods.
m
Recom m ended Final Resistance: VP=2.0” in w.g., VPX=1.5” in w.g.

N
“Serving You With Locations Throughout The ation”
m
w
m
Glasfloss has a policy of uninterrupted research, develop ent and product i prove ent and reserves the right to change design and specifications ithout notice.
