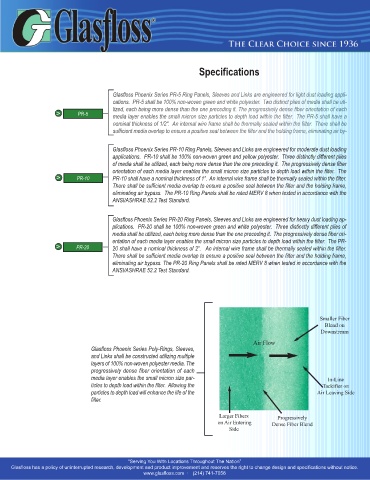

Specifications

Glasfloss Phoenix Series PR-5 Ring Panels, Sleeves and Links are engineered for light dust loading appli-
cations. PR-5 shall be 100% non-woven green and white polyester. Two distinct plies of edia shall be uti-
m
lized, each being m ore dense than the one preceding it. The progressively dense fiber orientation of each
> PR-5
m edia layer enables the sm all m icron size particles to depth load within the filter. The PR-5 shall have a
nom inal thickness of 1/2". An internal wire fram e shall be ther ally sealed within the filter. There shall be
m
sufficient edia overlap to ensure a positive seal between the filter and the holding fram e, elim inating air by-
m
Glasfloss Phoenix Series PR-10 Ring Panels, Sleeves and Links are engineered for oderate dust loading
m
applications. PR-10 shall be 100% non-woven green and yellow polyester. Three distinctly different plies
m
m
of edia shall be utilized, each being ore dense than the one preceding it. The progressively dense fiber
orientation of each m edia layer enables the sm all m icron size particles to depth load within the filter. The
> PR-10 PR-10 shall have a nom inal thickness of 1”. An internal wire fram e shall be ther ally sealed within the filter.
m
There shall be sufficient m edia overlap to ensure a positive seal between the filter and the holding fram e,
elim inating air bypass. The PR-10 Ring Panels shall be rated M ERV 8 when tested in accordance with the
ANSI/ASHRAE 52.2 Test Standard.

Glasfloss Phoenix Series PR-20 Ring Panels, Sleeves and Links are engineered for heavy dust loading ap-
plications. PR-20 shall be 100% non-woven green and white polyester. Three distinctly different plies of
m
m edia shall be utilized, each being ore dense than the one preceding it. The progressively dense fiber ori-
entation of each m edia layer enables the sm all m icron size particles to depth load within the filter. The PR-
> PR-20 20 shall have a nom inal thickness of 2”. An internal wire fram e shall be ther ally sealed within the filter.
m
There shall be sufficient m edia overlap to ensure a positive seal between the filter and the holding fram e,
elim inating air bypass. The PR-20 Ring Panels shall be rated M ERV 8 when tested in accordance with the
ANSI/ASHRAE 52.2 Test Standard.

Smaller Fiber
Blend on
w
D o nstream
A ir Flo w
Glasfloss Phoenix Series Poly-Rings, Sleeves,
and Links shall be constructed utilizing m ultiple
m
layers of 100% non-woven polyester edia. The
progressively dense fiber orientation of each
m edia layer enables the sm all m icron size par- In-Line
ticles to depth load within the filter. Allowing the Tackifier on
particles to depth load will enhance the life of the A ir Leaving Side
filter.

Larger Fibers Progressively
A
on ir Entering D ense Fiber Blend
Side
