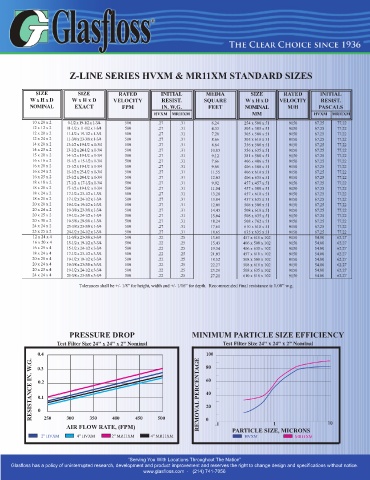

Page 70 - 2021'03 FULL CATALOG

&
Z-LIN E SE IES H X M M 11 M ST N D A R D SIZES
V
R
X
A
R
SIZE SIZE R A TE D IN ITIA L ME IA SIZE R A TE D IN ITIA L
D
W x H x D W x H x D V ELO IT Y R ESIST. SQ A R E W x H x D V ELO IT Y R ESIST.
C
U
C
X
N
N OMI A L E A C T FPM IN . .G. FEET N OMI A L M/H P SC A LS
N
A
W
X
X
V
HV X M M 11 M MM H X M M 11 M
R
R
10 x 20 x 2 9-1/2 x 19-1/2 x 1-3/4 500 .27 .31 6.24 254 x 508 x 51 9150 67.25 77.22
12 x 12 x 2 11-1/2 x 11-1/2 x 1-3/4 500 .27 .31 4.33 305 x 305 x 51 9150 67.25 77.22
12 x 20 x 2 11-1/2 x 19-1/2 x 1-3/4 500 .27 .31 7.20 305 x 508 x 51 9150 67.25 77.22
12 x 24 x 2 11-3/8 x 23-3/8 x 1-3/4 500 .27 .31 8.66 305 x 610 x 51 9150 67.25 77.22
14 x 20 x 2 13-1/2 x 19-1/2 x 1-3/4 500 .27 .31 8.64 356 x 508 x 51 9150 67.25 77.22
14 x 25 x 2 13-1/2 x 24-1/2 x 1-3/4 500 .27 .31 10.83 356 x 635 x 51 9150 67.25 77.22
15 x 20 x 2 14-1/2 x 19-1/2 x 1-3/4 500 .27 .31 9.12 381 x 508 x 51 9150 67.25 77.22
16 x 16 x 2 15-1/2 x 15-1/2 x 1-3/4 500 .27 .31 7.66 406 x 406 x 51 9150 67.25 77.22
16 x 20 x 2 15-1/2 x 19-1/2 x 1-3/4 500 .27 .31 9.60 406 x 508 x 51 9150 67.25 77.22
16 x 24 x 2 15-1/2 x 23-1/2 x 1-3/4 500 .27 .31 11.55 406 x 610 x 51 9150 67.25 77.22
16 x 25 x 2 15-1/2 x 24-1/2 x 1-3/4 500 .27 .31 12.03 406 x 635 x 51 9150 67.25 77.22
18 x 18 x 2 17-1/2 x 17-1/2 x 1-3/4 500 .27 .31 9.92 457 x 457 x 51 9150 67.25 77.22
18 x 20 x 2 17-1/2 x 19-1/2 x 1-3/4 500 .27 .31 11.04 457 x 508 x 51 9150 67.25 77.22
18 x 24 x 2 17-1/2 x 23-1/2 x 1-3/4 500 .27 .31 13.28 457 x 610 x 51 9150 67.25 77.22
18 x 25 x 2 17-1/2 x 24-1/2 x 1-3/4 500 .27 .31 13.84 457 x 635 x 51 9150 67.25 77.22
20 x 20 x 2 19-1/2 x 19-1/2 x 1-3/4 500 .27 .31 12.00 508 x 508 x 51 9150 67.25 77.22
20 x 24 x 2 19-3/8 x 23-3/8 x 1-3/4 500 .27 .31 14.43 508 x 610 x 51 9150 67.25 77.22
20 x 25 x 2 19-1/2 x 24-1/2 x 1-3/4 500 .27 .31 15.04 508 x 635 x 51 9150 67.25 77.22
20 x 30 x 2 19-5/8 x 29-5/8 x 1-3/4 500 .27 .31 18.24 508 x 762 x 51 9150 67.25 77.22
24 x 24 x 2 23-3/8 x 23-3/8 x 1-3/4 500 .27 .31 17.61 610 x 610 x 51 9150 67.25 77.22
25 x 25 x 2 24-1/2 x 24-1/2 x 1-3/4 500 .27 .31 18.65 635 x 635 x 51 9150 67.25 77.22
12 x 24 x 4 11-3/8 x 23-3/8 x 3-3/4 500 .22 .25 13.61 457 x 610 x 102 9150 54.80 62.27
16 x 20 x 4 15-1/2 x 19-1/2 x 3-3/4 500 .22 .25 15.43 406 x 508 x 102 9150 54.80 62.27
16 x 25 x 4 15-1/2 x 24-1/2 x 3-3/4 500 .22 .25 19.34 406 x 635 x 102 9150 54.80 62.27
18 x 24 x 4 17-1/2 x 23-1/2 x 3-3/4 500 .22 .25 21.03 457 x 610 x 102 9150 54.80 62.27
20 x 20 x 4 19-1/2 x 19-1/2 x 3-3/4 500 .22 .25 18.52 508 x 508 x 102 9150 54.80 62.27
20 x 24 x 4 19-3/8 x 23-3/8 x 3-3/4 500 .22 .25 22.27 508 x 610 x 102 9150 54.80 62.27
20 x 25 x 4 19-1/2 x 24-1/2 x 3-3/4 500 .22 .25 23.20 508 x 635 x 102 9150 54.80 62.27
24 x 24 x 4 23-3/8 x 23-3/8 x 3-3/4 500 .22 .25 27.21 610 x 610 x 102 9150 54.80 62.27
w
w
Tolerances shall be +/- 1/8” for height, idth and +/- 1/16” for depth. Recommended final resistance is 1.00” .g.
N
A
U
P ESSU R E R OP MIN IM M P R TIC LE SIZE EFFIC IE C Y
R
D
N
N
m
Test Filter Size 24" x 24" x 2” o inal Test Filter Size 24" x 24" x 2” o inal
m
0.4 100
.G. GE
0.3 80
. W TA
E IN 0.2 EN 60
C
C 40
0.1 L PER
N
ESISTA 0 A 20
250 300 350 400 450 500
R EMOV 0 .1 1 10
R
W
A IR FLO A TE, (FPM)
A
P R TIC LE SIZE, MIC R O S
N
R
X
H
M
X
M
H
2” V X M 4” V X M 2” R11 M 4” R11 M H V X M M R11 M
X
“Serving You With Locations Throughout The ation”
N
Glasfloss has a policy of uninterrupted research, develop ent and product i prove ent and reserves the right to change design and specifications ithout notice.
