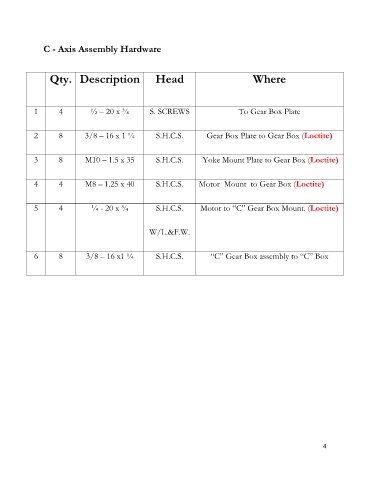

C - Axis Assembly Hardware
Qty. Description Head Where
1 4 ½ – 20 x ¾ S. SCREWS To Gear Box Plate
2 8 3/8 – 16 x 1 ¼ S.H.C.S. Gear Box Plate to Gear Box (Loctite)
3 8 M10 – 1.5 x 35 S.H.C.S. Yoke Mount Plate to Gear Box (Loctite)
4 4 M8 – 1.25 x 40 S.H.C.S. Motor Mount to Gear Box (Loctite)
5 4 ¼ - 20 x ¾ S.H.C.S. Motor to “C” Gear Box Mount. (Loctite)
W/L.&F.W.
6 8 3/8 – 16 x1 ¼ S.H.C.S. “C” Gear Box assembly to “C” Box
