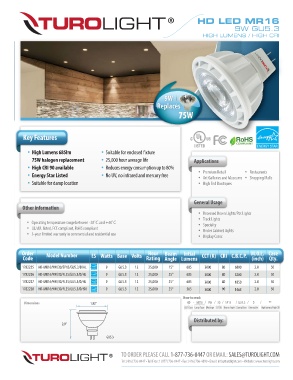

Page 12 - February 2018-Turolight

HD LED MR16
9W GU5.3
HIGH LUMENS / HIGH CRI

9W
Replaces
75W

Key Features

• High Lumens 685lm • Suitable for enclosed xture
75W halogen replacement • 25,000 hour average life Applications
• High CRI 90 available • Reduces energy consumption up to 80%
• Energy Star Listed • No UV, no infrared and mercury free • Premium Retail • Restaurants
• Art Galleries and Museums • Shopping Malls
• Suitable for damp location • High End Boutiques

General Usage
Other information
• Recessed Down Lights/Pot Lights
• Track Lights
• Operating temperature range between -20˚C and +40˚C • Specialty
• UL/cUL listed, FCC compliant, RoHS compliant • Under Cabinet Lights
• 3-year limited warranty in commercial and residential use • Display Cases

Order Model Number ES Watts Base Volts Hour Beam Intial CCT (K) CRI C.B.C.P. M.O.L. Case
Code Rating Angle Lumens (inch) Qty.

1782225 HD-MR16/9W/30/SP15/GU5.3/D/HL - 9 GU5.3 12 25,000 15° 685 3000 80 6800 2.0 50
1782226 HD-MR16/9W/30/FL25/GU5.3/D/HL 9 GU5.3 12 25,000 25° 685 3000 80 3200 2.0 50
1782227 HD-MR16/9W/30/FL35/GU5.3/D/HL 9 GU5.3 12 25,000 35° 685 3000 80 1850 2.0 50
1782228 HD-MR16/9W/30/FL35/GU5.3/D/I90 9 GU5.3 12 25,000 35° 565 3000 90 1463 2.0 50
How to read:
Dimensions 1.95” HD - MR16 / 9W / 30 / SP15 / GU5.3 / D / **
LED Class Lamp Type Wattage CCT(K) Beam Angle Lamp Base Dimmable High lumens/ High CRI
Distributed by:
2.0”

GU5.3

TO ORDER PLEASE CALL 1-877-736-0447 OR EMAIL: SALES@TUROLIGHT.COM

Tel: (416) 736-0447 • Toll Free: 1 (877) 736-0447 • Fax: (416) 736-4890 • Email: info@turolight.com • Website: www.turolight.com
