P. 4

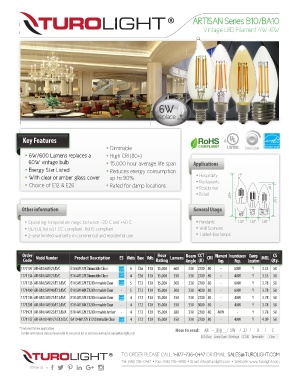

ARTISAN Series B10/BA10
Vintage LED Filament 4W-6W
6W
replace 60W
Key Features
• Dimmable Dimmable
• 6W/600 Lumens replaces a • High CRI (80+)
60W vintage bulb • 15,000 hour average life span Applications
• Energy Star Listed • Reduces energy consumption
• With clear or amber glass cover up to 90% • Hospitality
• Restaurants
• Choice of E12 & E26 • Rated for damp locations • Residential 3.78”
• Retail 4.09” 3.35”
Other information General Usage
• Operating temperature range between -20 C and +40 C • Pendants 1.38” 1.38” 1.38”
• UL/cUL listed, FCC compliant, RoHS compliant • Wall Sconces
• 2-year limited warranty in commercial and residential use • Table/Floor lamps
Order Model Number Product Description ES Watts Base Volts Hour Lumens Beam CCT CRI Filament Incandescen Damp MOL CS
Code Rating Angle (K) Rep. Rep. Location Qty.
1772107 AR-B10/6W/27/D/C B10 6W 27K Dimmable Clear 8 6 E26 120 15,000 600 330 2700 80 - 60W Y 3.35 50
1771134 AR-B10/4W/27/D/C B10 4W 27K Dimmable Clear 4 4 E26 120 15,000 350 330 2700 80 - 40W Y 3.35 50
1771135 AR-B10/5W/27/E12/D/C B10 5W 27K E12 Dimmable Clear - 5 E12 120 15,000 500 330 2700 80 - 60W Y 3.78 50
1771400 AR-B10/5W/40/E12/D/C B10 5W 40K E12 Dimmable Clear - 5 E12 120 15,000 500 330 4000 80 - 60W Y 3.78 50
1771136 AR-B10/4W/27/E12/D/C B10 4W 27K E12 Dimmable Clear 4 E12 120 15,000 350 330 2700 80 - 40W Y 3.78 50
1771201 AR-B10/4W/30/E12/D/C B10 4W 30K E12 Dimmable Clear - 4 E12 120 15,000 350 330 3000 80 - 40W Y 3.78 50
1771921 AR-B10/4W/22/E12/D/A B10 4W 22K E12 Dimmable Amber - 4 E12 120 15,000 280 330 2200 80 40W - Y 3.78 50
1771137 AR-BA10/4W/27/E12/D/C BA10 4W 27K E12 Dimmable Clear 4 E12 120 15,000 350 330 2700 80 - 40W Y 4.09 50
* Enclosed xture application How to read: AR - B10 / 5W / 27 / D / C
For the latest stock status please refer to your price list or send us an email at sales@turolight.com
LED Class Lamp Type Wattage CCT(K) Dimmable Clear
TO ORDER PLEASE CALL 1-877-736-0447 OR EMAIL: SALES@TUROLIGHT.COM
