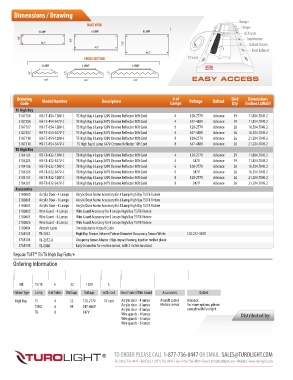

Page 90 - February 2018-Turolight

Dimensions / Drawing
Hanger
BASE VIEW
Hinges
4 LAMP 6 LAMP 8 LAMP AC Input
11.8” 16.5” Transformer
49.2” 21.2” Ballast Access
49.2” Heat Exhaust
49.2”
CROSS SECTION 10’ cord
4 LAMP 6 LAMP 8 LAMP
TL-HB-T5-654-320G-12V
4.7” 4.7” 4.7”
11.8” 16.5” 21.2” EASY ACCESS

Ordering Model Number Description # of Voltage Ballast Skid Dimensions
Code Lamps Qty (inches LxWxD)
T5 High Bay
3187106 HB-T5-454-120V-C 4 120-277V Advance 39 11.8X4.7X49.2
3187206 HB-T5-454-347V-C 4 347-480V Advance 39 11.8X4.7X49.2
3187107 HB-T5-654-120V-C 6 120-277V Advance 26 16.5X4.7X49.2
3187207 HB-T5-654-347V-C 6 347-480V Advance 26 16.5X4.7X49.2
3187110 HB-T5-854-120V-C 8 120-277V Advance 26 21.2X4.7X49.2
3187210 HB-T5-854-347V-C 8 347-480V Advance 26 21.2X4.7X49.2
T8 High Bay
3184105 HB-T8-432-120V-C 4 120-277V Advance 39 11.8X4.7X49.2
3184205 HB-T8-432-347V-C 4 347V Advance 39 11.8X4.7X49.2
3184106 HB-T8-632-120V-C 6 120-277V Advance 26 16.5X4.7X49.2
3184206 HB-T8-632-347V-C 6 347V Advance 26 16.5X4.7X49.2
3184107 HB-T8-832-120V-C 8 120-277V Advance 26 21.2X4.7X49.2
3184207 HB-T8-832-347V-C 8 347V Advance 26 21.2X4.7X49.2
ACCESSORIES
Accessories
3180000 Acrylic Door - 4 Lamps Acrylic Door Frame Accessory for 4 Lamp High Bay T5/T8 Fixture
3180001 Acrylic Door - 6 Lamps Acrylic Door Frame Accessory for 6 Lamp High Bay T5/T8 Fixture
3180005 Acrylic Door - 8 Lamps Acrylic Door Frame Accessory for 8 Lamp High Bay T5/T8 Fixture
3180002 Wire Guard - 4 Lamps Wire Guard Accessory for 4 Lmaps High Bay T5/T8 Fixture
3180003 Wire Guard - 6 Lamps Wire Guard Accessory for 6 Lmaps High Bay T5/T8 Fixture
3180006 Wire Guard - 8 Lamps Wire Guard Accessory for 8 Lmaps High Bay T5/T8 Fixture
3180004 Aircraft Cable 3m Adjustable Aircraft Cable
3768101 TL-2052 High Bay Passive Infrared Fixture Mounted Occupancy Sensor White 120-277-347V
3768104 TL-2052-A Occupancy Sensor Adaptor ; High-Impact Housing, injection molded plastic
3768105 TL-0008 Easy Connector for motion sensor, with 3 inches knockout

Regular TUFF™ T5/T8 High Bay Fixture
Ordering Information

HB T5/T8 6 32 120V C

Fixture Type Lamp # of Tubes Wattage Voltage with cord Door Frame/Wire Guard Accessories Ballast
High Bay T5 4 32 120-277V 10’ cord Acrylic door - 4 lamps Aircraft cables Advance
T5HO 6 54 347-480V Acrylic door - 6 lamps Motion sensor For more options, please
consult with Turolight
Acrylic door - 8 lamps
T8 8 347V Wire guards - 4 lamps
Wire guards - 6 lamps Distributed by:
Wire guards - 8 lamps

TO ORDER PLEASE CALL 1-877-736-0447 OR EMAIL: SALES@TUROLIGHT.COM

Tel: (416) 736-0447 • Toll Free: 1 (877) 736-0447 • Fax: (416) 736-4890 • Email: info@turolight.com • Website: www.turolight.com
