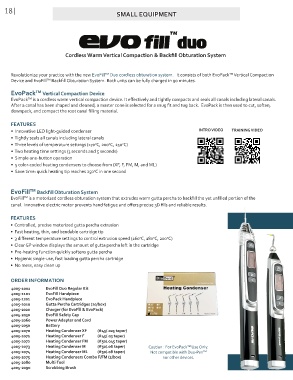

18| SMALL EQUIPMENT SMALL EQUIPMENT |19

Vertical Condensation with Backfill Obturation with

1a. Shape the root canal with endo files and 5. Using EvoFill's activated Gutta Percha Cartridge Tip,
determine the working length. Select a master make contact with the uer part of filled master cone
Cordless Warm Vertical Compaction & Backfill Obturation System cone that closely matches the apical size. in the canal, transfer heat for 3 to 5 seconds to soften
the material.

Revolutionize your practice with the new EvoFill Duo cordless obturation system. It consists of both EvoPack Vertical Compaction
TM
TM
TM
Device and EvoFill Backfill Obturation System. Both units can be fully charged in 90 minutes. 1b. Insert Heating Condenser (EvoPack) into the root 6a. Extrude the melted Gutta Percha into the root canal.
canal to the point 4~7mm short of the working
TM
EvoPack Vertical Compaction Device length. Move and set the endo stop accordingly.
EvoPack is a cordless warm vertical compaction device. It effectively and tightly compacts and seals all canals including lateral canals.
TM
After a canal has been shaped and cleaned, a master cone is selected for a snug fit and tug back. EvoPack is then used to cut, soften,
downpack, and compact the root canal filling material.
2. Insert the selected master Gutta Percha cone that 6b. Continue flowing while withdrawing the tip
FEATURES is coated with sealer. from the canal.
• Innovative LED light-guided condenser INTRO VIDEO TRAINING VIDEO
• Tightly seals all canals including lateral canals
• Three levels of temperature settings (170 C, 200 C, 250 C)
0
0
0
• Two heating time settings (3 seconds and 5 seconds) 3a. Place Heating Condenser (EvoPack) in the orifice 7. Use a hand plugger to compact the
• Simple one-button operation of the canal and activate EvoPack by pressing the obturation material.
• 5 color-coded heating condensers to choose from (XF, F, FM, M, and ML) Operation Button. Using the activated Heating
Condenser, cut the middle of Gutta Percha cone and
• Save time: quick heating tip reaches 250 C in one second downpack the soften material to the point 6~9mm
0
from the apex for about 2 seconds only.
TM
EvoFill Backfill Obturation System SPECIFICATIONS
EvoFill is a motorized cordless obturation system that extrudes warm gutta percha to backfill the yet unfilled portion of the 3b. Release the Operation Button to allow the Heating
TM
Condenser to cool down, while at the same time
canal. Innovative electric motor prevents hand fatigue and offers precise 3D fills and reliable results. continue pushing and holding the cooled Heating EvoPack Size (mm) L x W x H 182 x 25 x 29 mm
Condenser to the apex for 8 seconds. This ensures all Weight (g) 102 +/- 1 g (incl. battery)
FEATURES lateral and accessory canals are filled. Activate the Standby/Auto Power Off 5 min./10 min.
• Controlled, precise motorized gutta percha extrusion Heating Condenser again by pressing and holding the Operation Time 5 seconds x 420 times
• Fast heating, thin, and bendable cartridge tip Operation Button for about 1.5 seconds, compact the EvoFill Size (mm) L x W x H 222 x 25 x 29 mm
• 3 different temperature settings to control extrusion speed (160 C, 180 C, 200 C) Gutta Percha cone to the point 4~7mm of working Weight (g) 190 +/- 1 g (incl. battery)
0
0
0
length.
• Clear GP window displays the amount of gutta percha left in the cartridge Standby/Auto Power Off 5 min./10 min.
• Pre-heating function quickly softens gutta percha Operation Time 5 minutes x 12 times
• Hygienic single-use, fast loading gutta percha cartridge 4. Condense the remaining material using a Charger Size (mm) L x W x H 178 x 13 x 82 mm
• No mess, easy clean up hand plugger. Charging time Arox. 90 minutes
Battery Lithium Ion Battery, 2500 mAh
ORDER INFORMATION
4005-1001 EvoFill Duo Regular Kit
4005-1101 EvoFill Handpiece
4005-1201 EvoPack Handpiece
4005-2010 Gutta Percha Cartridges (20/box)
4005-2020 Charger (for EvoFill & EvoPack)
4005-2030 EvoFill Safety Cap
4005-2060 Power Adapter and Cord
4005-2050 Battery TM
4005-2070 Heating Condenser XF (#45/.025 taper) Gutta Percha Cartridge (EvoFill) EvoFill Duo Complete Kit
4005-2071 Heating Condenser F (#45/.03 taper) #4005-2010 #4005-1001 (1 YEAR WARRANTY)
4005-2072 Heating Condenser FM (#50/.045 taper)
4005-2073 Heating Condenser M (#50/.06 taper) Caution : For EvoPack Use Only. Contains: 23G x 20 cartridges/box Contains:
TM
4005-2074 Heating Condenser ML (#50/.08 taper) Not compatible with Duo-Pen • Fast loading 1 EvoFill Handpiece, 1 Safety Cap, 1 EvoPack
TM
4005-2075 Heating Condensers Combo F/FM (2/box) nor other devices. • Single-use Handpiece, 2 Heating Condensers (size F & FM),
4005-2080 Multi-Tool • Hygienic 1 Dual Charger, 1 Power Adapter & Cord,
4005-2090 Scrubbing Brush • Bendable tip 1 Scrubbing Brush, 1 Multi-Tool, User Manual.
• Excellent flowability
