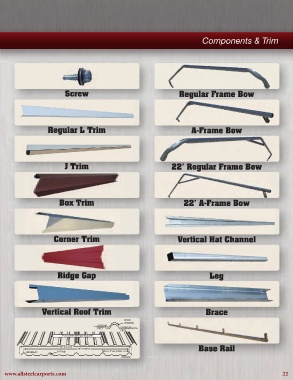

P. 23
Components & Trim
Screw Regular Frame Bow
Regular L Trim A-Frame Bow
J Trim 22’ Regular Frame Bow
Box Trim 22’ A-Frame Bow
Corner Trim Vertical Hat Channel
Ridge Gap Leg
Vertical Roof Trim Brace
DRAIN
CHANNEL
OVERLAP
PIECE UNDERLAP
PIECE
9” on center steel panel prole
38” nominal Base Rail
36” nominal
UNDERLAP 3/4” high 9” on center
OVERLAP
w 22
