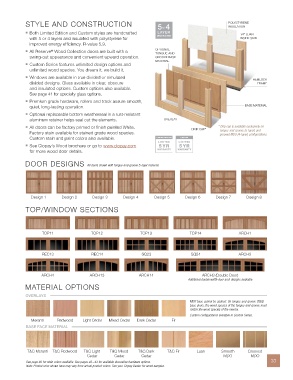

Page 33 - Clopay 2017

STYLE AND CONSTRUCTION 5 4 POLYSTYRENE
INSULATION
or
Both Limited Edition and Custom styles are handcrafted LAYER
■ 1/4" LUAN
with 5 or 4 layers and insulated with polystyrene for CONSTRUCTION INSIDE SKIN
improved energy efficiency. R-value 5.9.
®
■ All Reserve Wood Collection doors are built with a OPTIONAL
TONGUE-AND-
swing-out appearance and convenient upward operation. GROOVE BASE
MATERIAL
■ Custom Series features unlimited design options and
unlimited wood species. You dream it, we build it.
■ Windows are available in true divided or simulated HEMLOCK
divided designs. Glass available in clear, obscure FRAME
and insulated options. Custom options also available.
See page 41 for specialty glass options.
■ Premium grade hardware, rollers and track assure smooth,
quiet, long-lasting operation. BASE MATERIAL
■ Optional replaceable bottom weatherseal in a rust-resistant
aluminum retainer helps seal out the elements. OVERLAY

■ All doors can be factory primed or finish painted White. DRIP CAP* * Drip cap is available exclusively on
Factory stain available for stained grade wood species. tongue-and-groove (5-layer) and
grooved MDO (4-layer) configurations.
Custom stain and paint colors also available. LIMITED EDITION CUSTOM
LIMITED LIMITED
See Clopay’s Wood brochure or go to www.clopay.com 5 YR 5 YR
■
for more wood door details. WARRANTY WARRANTY
DOOR DESIGNS All doors shown with tongue-and-groove 5-layer material.

Design 1 Design 2 Design 3 Design 4 Design 5 Design 6 Design 7 Design 8

TOP/WINDOW SECTIONS

TOP11 TOP12 TOP13 TOP14 ARCH1

REC13 REC14 SQ23 SQ24 ARCH3

ARCH4 ARCH13 ARCH14 ARCH3 (Double Door)
Additional double width door arch designs available.
MATERIAL OPTIONS
OVERLAYS
MDO base cannot be stained. On tongue-and-groove (T&G)
base doors, the wood species of the tongue-and-groove must
match the wood species of the overlay.
Custom configurations available in Custom Series.
Meranti Redwood Light Cedar Mixed Cedar Dark Cedar Fir
BASE FACE MATERIAL

T&G Meranti T&G Redwood T&G Light T&G Mixed T&G Dark T&G Fir Luan Smooth Grooved
Cedar Cedar Cedar MDO MDO
See page 40 for stain colors available. See pages 42–43 for available decorative hardware options. 33
Note: Printed color shown here may vary from actual product colors. See your Clopay Dealer for wood samples.
