Page 7 - All Steel Catalog 1
P. 7

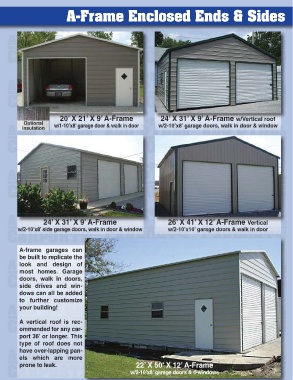

A-Frame Enclosed Ends & Sides


























                          20’ X 21’ X 9’ A-Frame                    24’ X 31’ X 9’ A-Frame w/Vertical roof
           Optional
          Insulation    w/1-10’x8’ garage door & walk in door      w/2-10’x8’ garage doors, walk in door & window






















                   24’ X 31’ X 9’ A-Frame                              26’ X 41’ X 12’ A-Frame Vertical
        w/2-10’x8’ side garage doors, walk in door & window            w/2-10’x10’ garage doors & walk in door



         A-frame garages can
         be built to replicate the
         look and design of
         most homes. Garage
         doors, walk in doors,
         side drives and win-
         dows can all be added
         to further customize
         your building!


         A vertical roof is rec-
         ommended for any car-
         port 36’ or longer. This
         type of roof does not
         have over-lapping pan-
         els which are more
         prone to leak.                                   22’ X 50’ X 12’ A-Frame
                                                       w/2-10’x8’ garage doors & 4-windows
