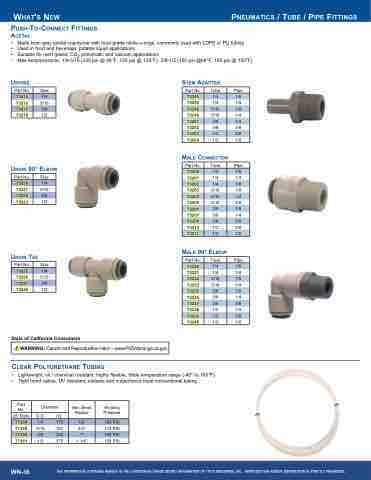

What's NeW PNeumatICs / tube / PIPe fIttINgs
Push-to-CoNNeCt fIttINgs aCetal
• Made from gray acetal copolymer with food grade nitrile o-rings, commonly used with LDPE or PU tubing
• Used in food and beverage, potable liquid applications
• Suitable for inert gases, CO2 pneumatic and vacuum applications
• Max temp/pressure: 1/4-5/16 (230 psi @ 68°F, 150 psi @ 150°F) 3/8-1/2 (150 psi @68°F, 100 psi @ 150°F)
uNIoNs
uNIoN 90° elboW
uNIoN tee
State of California Consumers
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov Clear PolyurethaNe tubINg
stem adaPter
male CoNNeCtor
Part No.
Tube
Pipe
73245
1/4
1/8
73246
1/4
1/4
73248
5/16
1/8
73249
5/16
1/4
73251
3/8
1/4
73252
3/8
3/8
73253
1/2
3/8
73254
1/2
1/2
Part No.
Size
73215
1/4
73216
5/16
73217
3/8
73218
1/2
Part No.
Tube
Pipe
73200
1/4
1/8
73201
1/4
1/4
73202
1/4
3/8
73203
5/16
1/8
73204
5/16
1/4
73205
5/16
3/8
73206
3/8
1/8
73207
3/8
1/4
73208
3/8
3/8
73210
1/2
3/8
73211
1/2
1/2
Part No.
Size
73220
1/4
73221
5/16
73222
3/8
73223
1/2
male 90° elboW
Part No.
Tube
Pipe
73230
1/4
1/8
73231
1/4
1/4
73232
5/16
1/8
73233
5/16
1/4
73235
3/8
1/8
73236
3/8
1/4
73237
3/8
3/8
73238
1/2
1/4
73239
1/2
3/8
73240
1/2
1/2
Part No.
Size
73225
1/4
73226
5/16
73227
3/8
73228
1/2
• Lightweight, oil / chemical resistant, highly flexible; Wide temperature range (-40° to 165°F)
• Tight bend radius, UV resistant, outlasts and outperforms most conventional tubing
Part No.
Diameter
Min. Bend Radius
Working Pressure
25' Rolls
O.D.
I.D.
77358
1/4
.170
1/2"
180 PSI
77359
5/16
.187
3/4"
175 PSI
77360
3/8
.250
1"
150 PSI
77361
1/2
.375
1 1/4"
150 PSI
WN-36
