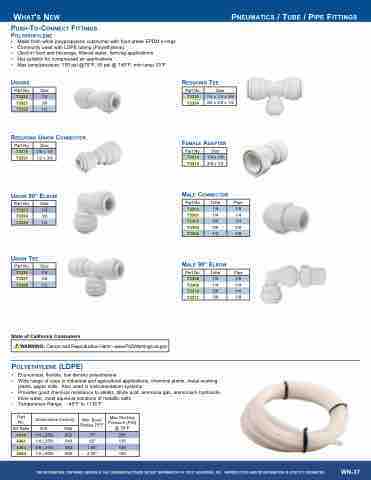

What's NeW PNeumatICs / tube / PIPe fIttINgs
Push-to-CoNNeCt fIttINgs
PolyProPyleNe
• Made from white polypropylene copolymer with food grade EPDM o-rings
• Commonly used with LDPE tubing (Polyethylene)
• Used in food and beverage, filtered water, farm/ag applications
• Not suitable for compressed air applications
• Max temp/pressure: 150 psi @70°F, 60 psi @ 140°F, min temp 33°F
uNIoNs
reduCINg uNIoN CoNNeCtor
uNIoN 90° elboW
uNIoN tee
State of California Consumers
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov PolyethyleNe (ldPe)
reduCINg tee
female adaPter
male CoNNeCtor
male 90° elboW
Part No.
Size
73332
1/4 x 1/4 x 3/8
73334
3/8 x 3/8 x 1/4
Part No.
Size
73320
1/4
73321
3/8
73322
1/2
Part No.
Size
73330
3/8 x 1/4
73331
1/2 x 3/8
Part No.
Size
73314
1/4 x 1/8
73316
3/8 x 1/4
Part No.
Tube
Pipe
73300
1/4
1/8
73301
1/4
1/4
73303
3/8
1/4
73304
3/8
3/8
73306
1/2
3/8
Part No.
Size
73323
1/4
73324
3/8
73325
1/2
Part No.
Size
73326
1/4
73327
3/8
73328
1/2
Part No.
Tube
Pipe
73308
1/4
1/8
73309
1/4
1/4
73310
3/8
1/4
73311
3/8
3/8
• Economical, flexible, low density polyethylene
• Wide range of uses in industrial and agricultural applications, chemical plants, metal working
plants, paper mills. Also used in instrumentation systems
• Provides good chemical resistance to alkalis, dilute acid, ammonia gas, ammonium hydroxide,
brine water, most aqueous solutions of metallic salts
• Temperature Range: -40°F to +135°F
Part No.
Dimensions (Inches)
Min. Bend Radius 70°F
Max Working Pressure (PSI) @ 70°F
50' Rolls
O.D.
Wall
4360
1/4 (.250)
.062
.75"
200
4361
1/4 (.250)
.040
.62"
135
4363
3/8 (.375)
.062
1.50"
135
4364
1/2 (.500)
.062
2.00"
100
the information contained hereon is the confidential/trade secret information of tifco industries, inc. reproduction and/or distribution is strictly prohibited. WN-37
