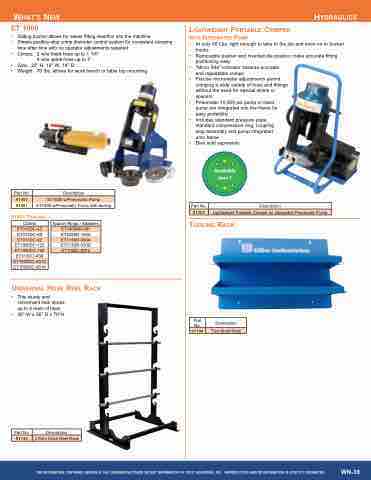

What's NeW hydraulICs
et 1000
• Sliding pusher allows for easier fitting insertion into the machine
• Simple positive-stop crimp diameter control system for consistent crimping
time after time with no operator adjustments required
• Crimps: 2 wire braid hose up to 1 1/4"
4 wire spiral hose up to 1"
• Size: 22" H, 16" W, 14" D
• Weight: 70 lbs. allows for work bench or table top mounting
91451 toolINg:
uNIversal hose reel raCk
• This sturdy and convenient rack stores up to 6 reels of hose
• 58"Wx36"Dx78"H
lIghtWeIght Portable CrImPer WIth INtegrated PumP
• At only 60 Lbs. light enough to take to the job and even on to bucket
trucks
• Removable pusher and inverted die position make accurate fitting
positioning easy
• "Micro Site" indicator assures accurate
and repeatable crimps
• Precise micrometer adjustments permit
crimping a wide variety of hose and fittings without the need for special shims or spacers
• Pneumatic 10,000 psi pump or hand pump are integrated into the frame for easy portability
• Includes standard pressure plate, standard compression ring, coupling stop assembly and pump integrated onto frame
• Dies sold separately
Available June 1
toolINg raCk
Part No.
Description
91450
ET1000 w/Pneumatic Pump
91451
ET1000 w/Pneumatic Pump with tooling
Part No.
Description
91352
Lightweight Portable Crimper w/ Integrated Pneumatic Pump
Collets
Spacer Rings / Adapters
ET313DC-4Z
ET1000AR-001
ET313DC-6Z
ET425SR-150A
ET313DC-8Z
ET313SR-090A
ET1000DC-12Z
ET313SR-030D
ET1000DC-16Z
ET1000C-0012
ET313DC-4S8
ET1000DC-4S12
ET1000DC-4S16
Part No.
Description
91144
Two-Shelf Rack
Part No.
Description
91146
3 Pole Hose Reel Rack
