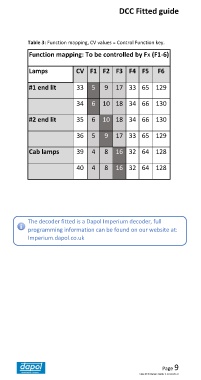

DCC Fitted guide
Table 3: Function mapping, CV values = Control Function key.
Function mapping: To be controlled by Fx (F1-6)
Lamps CV F1 F2 F3 F4 F5 F6
#1 end lit 33 5 9 17 33 65 129
34 6 10 18 34 66 130
#2 end lit 35 6 10 18 34 66 130
36 5 9 17 33 65 129
Cab lamps 39 4 8 16 32 64 128
40 4 8 16 32 64 128
The decoder fitted is a Dapol Imperium decoder, full
programming information can be found on our website at:
Imperium.dapol.co.uk
Page 9
Class 68 N Owners Guide. V 1.0 28-09-17
