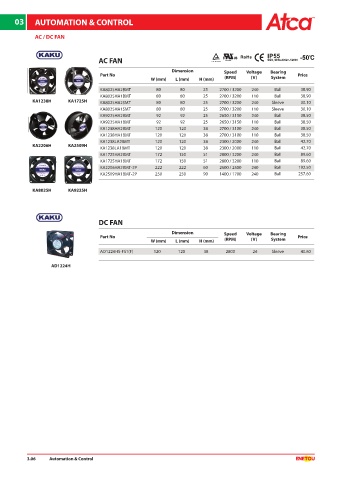

Page 48 - ATCA CATALOG 2019
P. 48
03 AUTOMATION & CONTROL
AC / DC FAN
R RoHs IP55
AC FAN E224785 SGS, SHRL80027-1/2008
Dimension Speed Voltage Bearing
Part No Price
W (mm) L (mm) H (mm) (RPM) (V) System
KA8025HA2BMT 80 80 25 2700 / 3200 240 Ball 38.90
KA8025HA1BMT 80 80 25 2700 / 3200 110 Ball 38.90
KA1238H KA1725H KA8025HA2SMT 80 80 25 2700 / 3200 240 Sleeve 30.10
KA8025HA1SMT 80 80 25 2700 / 3200 110 Sleeve 30.10
KA9225HA2BMT 92 92 25 2650 / 3150 240 Ball 38.50
KA9225HA1BMT 92 92 25 2650 / 3150 110 Ball 38.50
KA1238HA2BMT 120 120 38 2700 / 3100 240 Ball 38.50
KA1238HA1BMT 120 120 38 2700 / 3100 110 Ball 38.50
KA1238LA2BMT 120 120 38 2300 / 2000 240 Ball 42.70
KA2206H KA2509H
KA1238LA1BMT 120 120 38 2300 / 2000 110 Ball 42.70
KA1725HA2BMT 172 150 51 2800 / 3200 240 Ball 89.60
KA1725HA1BMT 172 150 51 2800 / 3200 110 Ball 89.60
KA2206HA2BMT-2P 222 222 60 2500 / 2500 240 Ball 192.50
KA2509HA1BMT-2P 250 250 90 1400 / 1700 240 Ball 257.60
KA8025H KA9225H
DC FAN
Dimension Speed Voltage Bearing
Part No Price
W (mm) L (mm) H (mm) (RPM) (V) System
AD1224HS-FS1(F) 120 120 38 2800 24 Sleeve 40.60
AD1224H
3.06 Automation & Control
